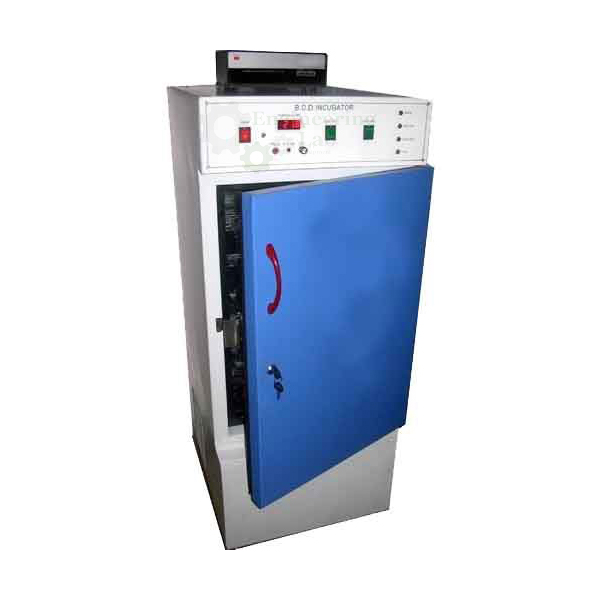

BOD Incubator
Product Code : EL-ETLE-10976
Quick Answer: The BOD Incubator is a refrigerated and heated incubation chamber, combining refrigerated insulation and freezing in one unit, used for BOD (Biochemical Oxygen Demand) testing. It offers a temperature range of 5°C to 50°C with a stability of ±0.5°C or better, using a silent, energy-saving Kirloskar compressor with R 134 refrigerant, a 304 grade stainless steel interior with adjustable shelves, and a Kanthal A-1 tubular heater. It is controlled by a Digital Temperature Controller cum Indicator and a Microprocessor based PID Temperature Controller cum Indicator with voltmeter (digital voltmeter optional), and runs on a 220/230V AC, ±10%, 50Hz power supply.
The BOD Incubator combines refrigerated insulation and freezing in one unit, with better mineral and PUF insulation to keep the surface temperature of the body comfortable and avoid cooling loss. It uses a silent, energy-saving Kirloskar compressor designed to circulate uniform air throughout the chamber, with an imported coil condenser copper coil for improved temperature distribution. The interior is polished 304 grade stainless steel for corrosion resistance and long life, with adjustable shelves to make space for items of different heights, and a Kanthal A-1 tubular heater is fitted for better accuracy. It has full features with a Digital Temperature Controller cum Indicator and a Microprocessor based PID Temperature Controller cum Indicator with voltmeter (digital voltmeter optional), an angle iron frame at the bottom with castor wheels for easy movement, 2 fans fitted inside the chamber (one for cooling and one for heating), and a safety controller provided with the Digital Temperature Controller cum Indicator.
TECHNICAL PARAMETERS:
Housing Material: CRC /Mild Steel duly power Coated
Compressor: Kirloskar
Duty Cycle: Continuous
Interior: illumination provide inside the chamber
Refrigerant: R 134
Power Consumption: 220/ 230V AC supply +- 10% 50Hz.
Safety Function: Safety Controller for Safety of Digital Temp. Controller cum Indicator and Cooling Compressor
Temperature Range: 5°C - 50°C
Temperature Stability: +-0.5°C or Better
Optional: RS 232 Communication Interface
Optional: Double Colour Gate, Top and Grill
Optional: Illumination of 3 Fluorescent tube 2Ft. for 4, 6, 10, 12 Cuft. BOD, 24 Hrs. Cyclic Manual Timer, Voltage Stabilizer, Capacity as per size / Cap. requirement.
