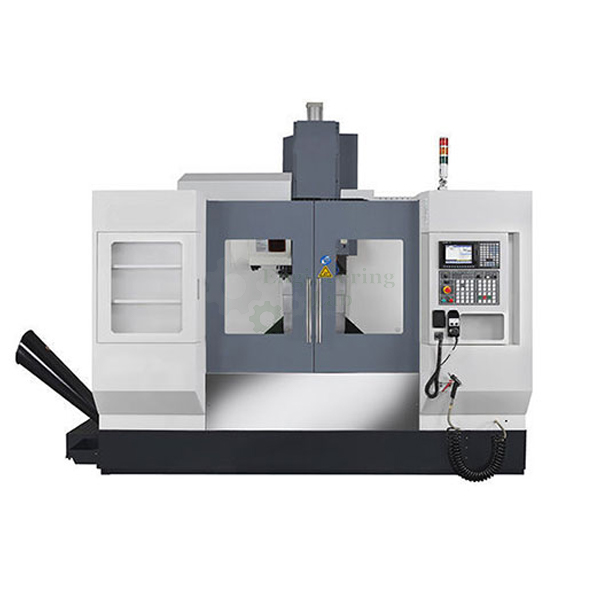

CNC Milling Machine Manufacturer,Supplier and Exporter in India
Product Code : EL-WTMAA-10445
Engineering Lab Equipments is a leading CNC Milling Machine Manufacturer,and suppliers in India, CNC Milling Machine Manufacturer,and suppliers in South Africa.CNC Milling Machine Suppliers in Mozambique,CNC Milling Machine A quality product from Engineering Lab Equipments ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.
Table:
Working space (X-axis x Y-axis) : (650mm X 400mm)
Capacity of workpiece mass : 300kg (uniform load)
Working surface configuration : (3xT-slots size 14 mm pitch 125 mm)
Capacity:
X-axis-travel (longitudinal movement of table): 500 mm
Y-axis travel (cross movement of saddle): 400 mm
Z-axis travel (vertical movement of spindle head) : 300 mm
Feedrate:
Rapid traverse rate : 48 m/min (X,Y,Z)
Feedrate : 30000 mm/min
Machine size:
Machine height: 2236 mm
Floor space: 1615 mm X 2040 mm
Mass of machine: Approx. 2000 kg
Controller:
Part program storage : 512kbyte
Registerable programs : 200
Operation panel : 10.4″ color LCD
I/O interface : RS-232C Interface
Controlled axis : 3-axis
Simultaneously controllable axis : 3-axis
High Response Velocity (HRV)
Rigid Tapping (M29)
Handwheel feed
Back ground editing
Extended part program editing
Power Source: 200-240VAC, 50-60Hz, 3- Phase
AI programming function: On screen selection of instructions with guidance allows simpler programming.
Minimum key strokes enables estimate of default value, optimal tool selection and choices of cutting conditions.
Programming in the NC language is also available with AI programming.
Contact ELE for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned engineering lab equipments exporters, engineering lab equipments manufacturers in india, engineering educational equipment manufacturer, mechanical engineering lab equipments suppliers, engineering lab equipments supplier, engineering educational equipment supplier in Ambala, India.
