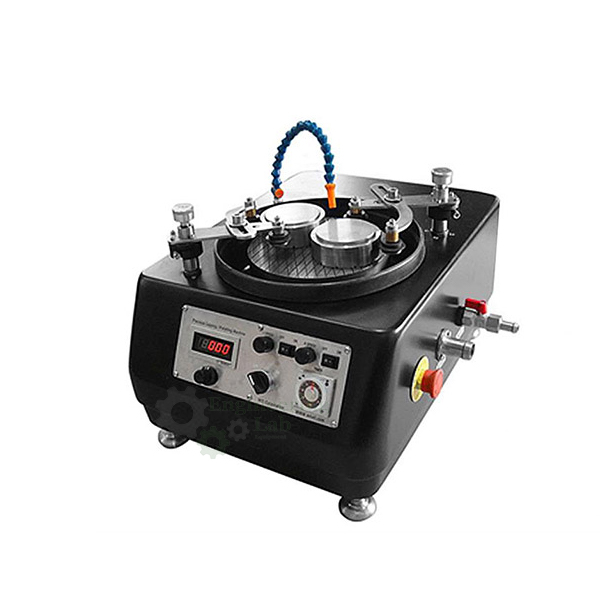

Polishing and Lapping Machine
Product Code : EL-RTLE-10502
Quick Answer: The Polishing and Lapping Machine is a compact, bench-mounted single spindle lapping machine used for the final polishing of mounted rock or concrete specimens, driven by a 1 HP, single-phase, 230V A.C. motor running at 450/500 rpm. It comes with a 20 cm dia top and adapter for polishing cloth or paste, a continuous water feed/swing-in tap arrangement, and sample holders to accommodate EX, AX, 38mm, BX and NX size cores (other sizes on request).
This unit is provided with a 1 HP, Single Phase, A.C. motor, and is a bench-mounted single spindle lapping machine ideally suited for the final polishing of mounted rock or concrete specimens. Two sample holders of the sample size ordered for are provided with each machine as standard supply. Sample holders of other sizes can also be provided on request. A swing-in tap, for continuous water supply during operation, is also provided. This is a motor-driven unit with 450/500 rpm, operated on Single Phase, 230 V A.C.
A - Sample Holder for Ex size
B - Sample Holder for Ax size
C - Sample Holder for 38mm size
D - Sample Holder for Bx size
E - Sample Holder for Nx size
Compact table model
20 cm dia top and Adapter to hold polishing cloth or paste
Sample Holders to accommodate up to NX size Cores
Continuous water feed arrangement during operation
