Worm and Wheel Apparatus

Worm and Wheel Apparatus

Product Code : EL-AMLE-10645

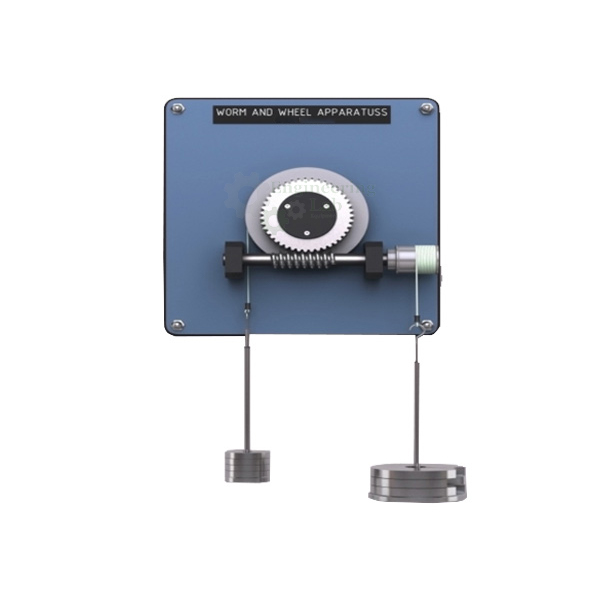

Quick Answer: This Worm and Wheel Apparatus is an all-metallic, self-contained unit used to demonstrate the efficiency of a worm and wheel and the principle of work, with the whole arrangement fixed on heavy cast iron brackets for wall mounting. It consists of a machine-cut worm gear of 25 cm diameter carrying a metal drum of 12 cm diameter, and a machine-cut worm on a steel spindle carrying a 12 cm diameter pulley, and it comes complete with an effort pulley, string and hook, though without weights.
Worm Wheel is an all metallic self-contained apparatus useful for demonstrating the efficiency of worm and wheel and also the principle of work. The whole arrangement is fixed on heavy cast iron brackets capable of being fixed to a wall. The equipment consists of a machine cut worm gear of 25 cm diameter, carrying a metal drum of 12 cm diameter, and a machine cut worm on a steel spindle carrying a 12 cm diameter pulley. The Worm Wheel comes complete with effort pulley, string and hook but without weights.

For this and other applied mechanics lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: September 2026

Related Products: Gear Train Model, Gear Trainer Demonstrator, Wheel and Axle Apparatus
