Cam Mechanism

Cam Mechanism

Product Code : EL-AMLE-10617

Quick Answer:

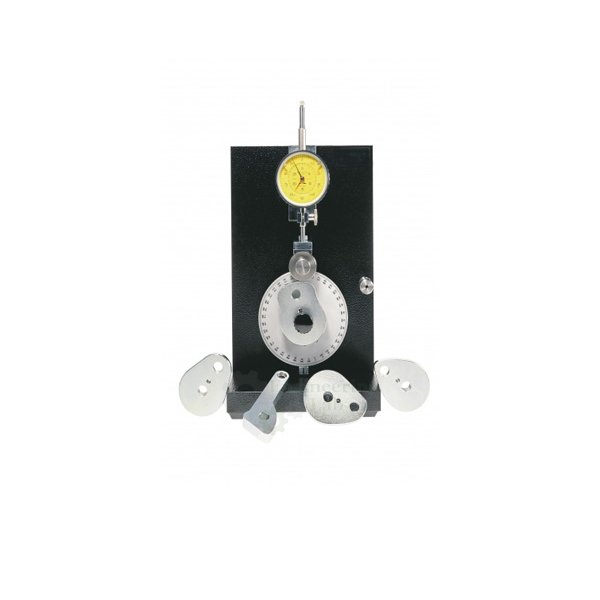

The Cam Mechanism apparatus demonstrates how a cam converts uniform rotating drive motion into non-uniform drive motion, with or without latching. It uses an engaging member, such as a roller plunger, flat plunger, or cam follower, whose stroke is measured directly while an angular scale reads the corresponding angle of rotation, and interchangeable cams of different shapes and profiles can be fitted to demonstrate different motion characteristics.

Principle of Operation:
Cam mechanisms are non-uniform translatable gear systems that convert uniform rotating drive motion into non-uniform drive motion, with or without latching. A cam mechanism generally consists of a cam, an engaging member, and a frame; the desired movement path is defined by the geometry of the cam and is produced by pressing a contour or profile onto the engaging member, which may be a roller plunger, a flat plunger, or a cam follower. The stroke is determined by measuring the travel, while an angular scale indicates the corresponding angle of rotation. The unit is used to clearly demonstrate the function of a cam mechanism, and cams are available in different shapes.

For this and other applied mechanics lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
Last Updated: September 2026

Related Products: Geneva Mechanism, Slider Crank Mechanism, Slotted Link Mechanism Apparatus, Four Bar Chain Apparatus
