Computerized Pressure Control Trainer Manufacturer,Supplier and Exporter in India
Product Code : EL-MAILE-10803
Engineering Lab Equipments is a leading Computerized Pressure Control Trainer Manufacturer,and suppliers in India, Computerized Pressure Control Trainer Manufacturer,and suppliers in South Africa.Computerized Pressure Control Trainer Suppliers in Mozambique,Computerized Pressure Control Trainer A quality product from Engineering Lab Equipments ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

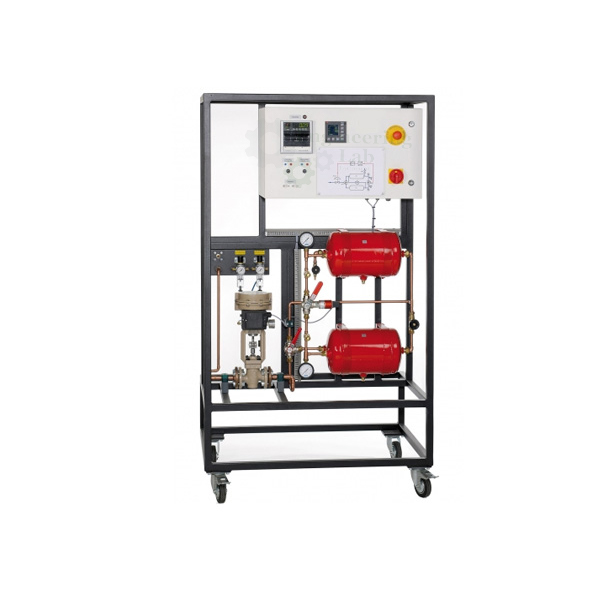

The Trainer provides a comprehensive experimental introduction to the fundamentals of control engineering using an example of pressure control.
The air pressure control system is a 2nd order system.
It comprises two in-line pressure tanks interconnected by a flow control valve.
An additional valve on the second tank makes air tapping possible and so can be used to simulate a disturbance variable.
A pressure sensor measures the pressure in the second vessel.
The controller used is a state-of-the-art digital industrial controller.
The actuator in the loop is a pneumatically operated control valve with a standardized current signal input.
The controlled variable X and the manipulating variable Y are plotted directly on an integrated 2-channel line recorder.
Alternatively, the variables can be tapped as analogue signals at lab jacks on the switch cabinet.
This enables external recording equipment, such as an oscilloscope or a flatbed plotter, to be connected.
FEATURES:
Experimental introduction to control engineering using an example of pressure control
Digital controller with freely selectable parameters: P, I, D and all combinations.
Construction of the system with components commonly used in industry.
SPECIFICATION:
2 pressure tanks :
Capacity: each 10L
Pressure: 10bar
Operating pressure: 6bar
Pressure sensor: 0…6bar
Pneumatically operated control valve :
Connecting flanges: DN15
Kvs: 0,1m3/h
Reference variable: 4…20mA
Stroke: 15mm
Characteristic curve equal-percentage
Line recorder :
2x 4…20mA
Feed rate: 0…7200mm/h, stepped
Controller :
Process variables X, Y as analogue signals: 4…20mA
Power required for operation
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase
DIMENSIONS AND WEIGHT:
LxWxH: 1000x700x1750mm
Weight: approx. 110kg
