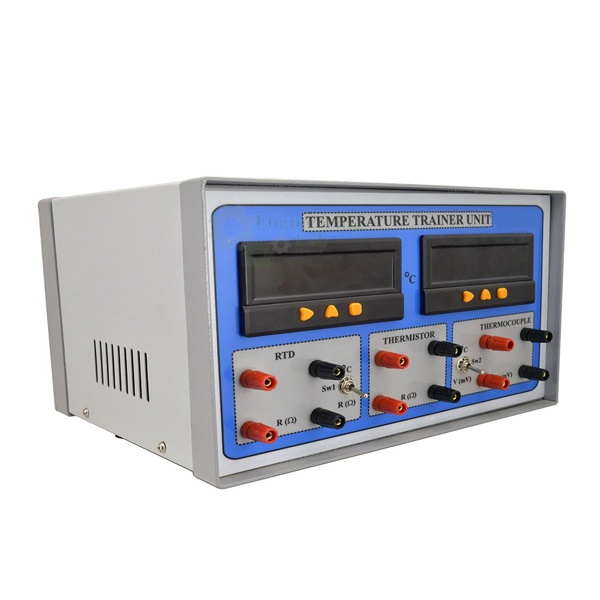

Temperature Measurement Trainer
Product Code : EL-MAILE-10812
Quick Answer: The Temperature Measurement Trainer is designed to measure temperature up to 100°C from a small heating source, with a digital indicator (3½ digit LED, 200mV FSD) provided to read the temperature, helping students understand the working of temperature transducers such as thermocouple, RTD, and thermistor. The system uses a small portable electric kettle (heated up to boiling, 100°C) as the temperature source, sensed via a Fe-K (J type) thermocouple, a PT-100 RTD, and a 5Kohms (-ve coefficient) thermistor housed inside a 6mm diameter stainless steel tube, cross-checked against a glass thermometer reading up to 110°C, with all test points brought out on the front panel schematic for understanding the instrument's working.
The Temperature Measurement Trainer is designed to measure temperature up to 100°C using a small heating source, with a digital indicator provided to read the temperature. It is designed in such a way that it helps in understanding the working of temperature transducers like thermocouple, RTD, thermistor and their working principle. Further, our range has a 3½ digit digital LED display of 200mVFSD.
FEATURES:
The System comprises of a small water Kettle as a temperature source up to 100°C with Thermocouple, RTD and Thermistor to sense the temperature.
Digital Indicator of 3½ digit is supplied along with the sensor to indicate the temperature in degree centigrade.
The front panel of the instrument is designed in such a way that the schematic circuit diagram of the temperature indicator is shown.
All test points are brought outside to enable the student to understand the working of the instrument properly.
The system is self-explanatory and all necessary accessories will be supplied along with the kit.
SPECIFICATION:
Combination of RTD, Thermocouple and Thermistor.
Display: 3½ digit digital LED display of 200mVFSD.
Probes: Sensors are housed inside 6mm dia SS tube of 6 lengths.
Source Temperature: A glass thermometer to read up to 110°C.
Sensors: Thermocouple – Fe-K (J type) R. T. D. – PT-100 Thermistor – 5Kohms (-ve coefficient)
Temperature: 100°C.
Temperature Source: A small portable electric kettle in which water can be heated up to boiling temperature
Power required for operation
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase
DIMENSIONS AND WEIGHT:
LxWxH: 400x300x300mm
Weight: approx. 15kg
