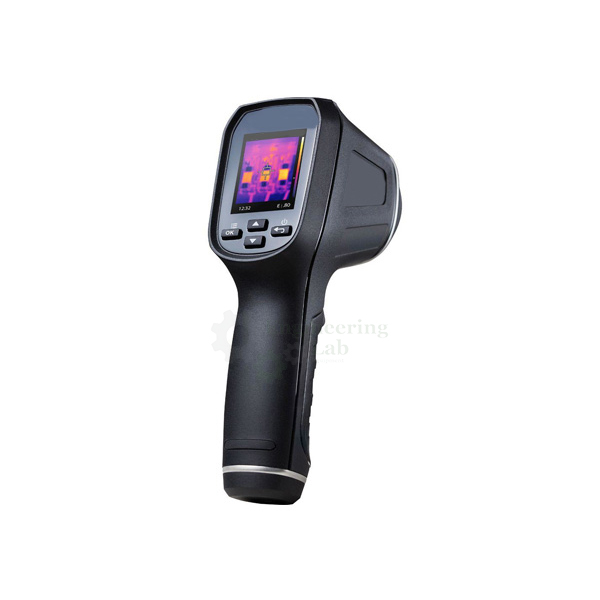

Thermal Image Camera
Product Code : EL-MAILE-10856
Quick Answer: A Thermal Image Camera (or thermal imaging camera, TIC) is a thermographic camera used in firefighting that renders infrared radiation as visible light, letting firefighters see areas of heat through smoke, darkness, or heat-permeable barriers; it is typically handheld, though it may be helmet-mounted, and is built with heat- and water-resistant, ruggedized housing. It works via five components – an optic system, detector, amplifier, signal processing, and display – that together render infrared output, such as that given off by warm objects or flames, into a real-time visible-light image. This model features a 76 mm (3″) color LCD display, weighs only 0.58 kg (1.2 lb), offers 2% accuracy over a temperature range of -20 to 250°C (-4 to 482°F), spot and area box measurement modes, a swappable Li-Ion battery with 4-hour life, simultaneous storage of IR/Visual/MSX images, and includes FLIR Tools reporting and analysis software.
A thermal imaging camera (colloquially known as a TIC) is a type of thermo graphic camera used in firefighting. By rendering infrared radiation as visible light, such cameras allow firefighters to see areas of heat through smoke, darkness, or heat-permeable barriers. Thermal imaging cameras are typically handheld, but may be helmet-mounted, and they are constructed using heat- and water-resistant housings, ruggedized to withstand the hazards of fireground operations. A thermal imaging camera consists of five components: an optic system, detector, amplifier, signal processing, and display. Fire-service specific thermal imaging cameras incorporate these components in a heat-resistant, ruggedized, and waterproof housing. These parts work together to render infrared radiation, such as that given off by warm objects or flames, into a visible light representation in real time.
The camera display shows infrared output differentials, so two objects with the same temperature will appear to be the same “color”. A handheld camera requires one hand to position and operate, leaving only one free hand for other tasks, but can be easily transferred between firefighters; the majority of thermal imaging cameras in use in the fire service are handheld models. Many thermal imaging cameras use gray scale to represent normal temperature objects, but highlight dangerously hot surfaces in different colors; cameras may be handheld or helmet-mounted.
SPECIFICATION:
76 mm (3″) Color LCD Display
Easy-to-Use, Weighs Only 0.58 kg (1.2 lb)
2% Accuracy
Picture-in-Picture Image (E5, E6 and E8)
Area Box Measurement Mode (E5, E6 and E8)
Radiometric jpg File Format
Swappable Li-Ion Battery with 4-Hour Life
Spot Measurement Mode
Simultaneous Storage of IR/Visual/MSX Images
FLIR Tools Reporting and Analysis Software Included
Temperature Range from -20 to 250°C (-4 to 482°F)
Variable Emissivity and Reflected Temperature Parameters for Detection Accuracy
