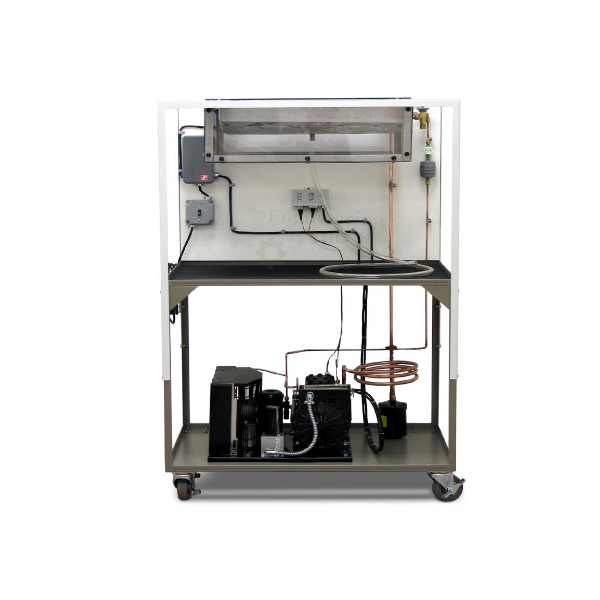

Computerized ICE Plant Trainer
Product Code : EL-RAACLE-10791
Quick Answer:
The Computerized ICE Plant Trainer enables students to study the basic principles of the ice plant cycle and the thermodynamics of the vapour compression refrigeration cycle through demonstration and experimentation, with a facility to measure various experimental parameters and interface the system with a computer for data logging. Ice cans are kept in a liquid tank cooled by the refrigerant evaporator, and while a conventional ice plant takes 12-24 hours to complete its cycle, this laboratory unit is specially designed to complete the ice-formation process within 4 hours. The unit includes dedicated educational software and a data-logging package.
Overview:
The Computerized ICE Plant Trainer enables students to study the basic principles of the ice plant cycle within a short period. The test rig is designed for the study of the thermodynamics of the vapour compression refrigeration cycle by way of demonstration and experimentation, and it has a facility to measure various parameters for experimentation. Ice cans are kept in a liquid tank, which is cooled by the refrigerant evaporator, and the present setup has a facility to interface the system with a computer, which enables the experimental data to be logged using the computer. As conventional ice plants take 12-24 hours to complete the cycle, this ice plant is specially designed to demonstrate the process of ice formation completing within a period of 4 hours, making it most suitable for laboratory use. The educational software and data-logging package have been developed for the unit.
FEATURES:
To study the working of ice plant.
To study the refrigerator circuit.
To calculate co-efficient of performance
SPECIFICATION:
Compressor: Hermitically sealed compressor, Kirloskar make.
Evaporator: Made of Stainless Steel, Insulated with ceramic wool/puff.
Expansion Device: Capillary Tube Compatible capacity.
Energy Measurement: By Energy meter
Tank: The inner tank shall be fabricated out of stainless steel
Condenser: Air cooled compatible to compressor
Condenser Cooling Fan: Compatible capacity with permanent lubricated motor.
Pressure Measurement: Pressure Transmitter- 2 Nos.
Temperature Measurement: Temperature Transmitter- 6 Nos.
Safety Control: overload and over current protectors for compressor and Time delay circuit.
Measuring ranges :
Differential pressure: 0…1000Pa (air)
Flow rate: 12…360L/h (water)
Temperature: 2x 0…50°C, 3x 0…100°C
Rel. humidity: 10…100%
Required for operation :
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 1400 x 800 x 1200 mm
Weight (approx.): 165 kg
