Cut Section Model of Rotary Hermetic Compressor
Product Code : EL-RAACLE-10798
Quick Answer:

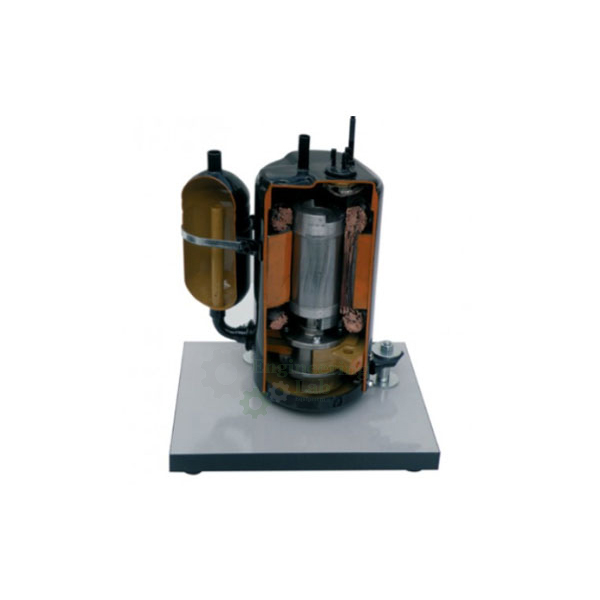

The Cut Section Model of Rotary Hermetic Compressor is a cutaway teaching model built from the original parts of a rotary compressor and sectioned to reveal its internal construction and working in clear, close-up detail. It is painted, mounted on a metal or wooden base, and supplied with a key card.
Overview:
This model is made from the original parts of a rotary compressor and is suitably sectioned to expose the internal construction, showing fine constructional details and how the compressor works. It is painted for clarity, mounted on a metal or wooden base, and supplied with a key card.
FEATURES:
This model will be made out of original parts.
The model will be suitably painted and mounted on a metal or wooden base
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 500 x 400 x 500 mm
Weight (approx.): 35 kg
SPECIFICATION:
It consists of a stationary cylinder, a roller and a shaft.
The shaft has an eccentric on which the roller is mounted.
A blade is set into the slot of a cylinder in such a manner that it always maintains contacts with a sloter by means of a spring.
The blade moves in and out of the slot to follow the rotor when it rotates.
Since the blade separates the suction and discharge parts, therefore it is often called a sealing blade.
When the shaft rotates, the roller also rotates the roller rotates so that it always touches the cylinder wall.
