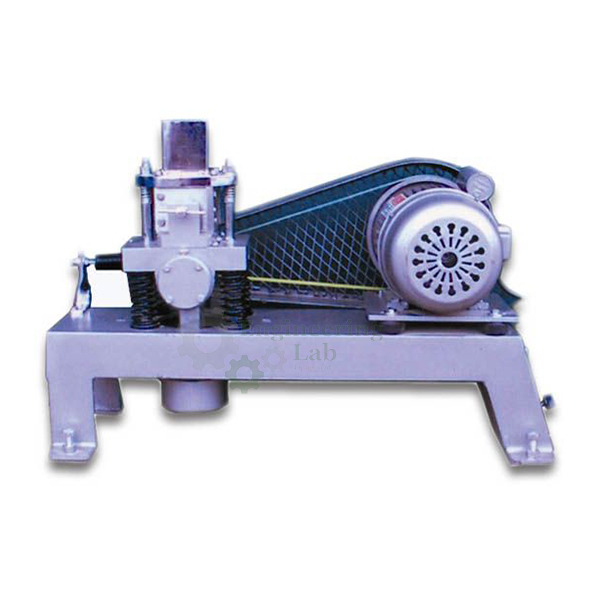

Vibrating Machine
Product Code : EL-CTLE-10364
Quick Answer: The Vibrating Machine consists of a vibrating frame assembly and an electric motor mounted on a sturdy base, used to compact 70.6 mm cement cube specimens at a vibration frequency of 12000 +/- 400 vibrations per minute. The frame assembly holds the mould via a vice with two threaded studs and a feed hopper, is supported on four springs, and is driven by an eccentric rotating shaft with an integral balance weight. It is supplied complete with a 70.6 mm cube mould with loose base plate and a time switch (0-5 mins x 1 min), tested to IS 4031 1968, IS 1344 1959 and BS 4550.
The machine consists of a vibrating frame assembly and an electric motor mounted on a sturdy base. The complete frame assembly consists of a vice to hold a 70.6 mm cube mould and two studs threaded at top, and a hopper to feed the sample into the mould. This assembly is supported on four springs and has an in built rotating shaft which rotates eccentrically and thus imparts vibrations to the entire frame, at a frequency of 12000 +/- 400 vibrations per minute. A balance weight is an integral bottom part of the frame, and the centre of gravity of the assembly is brought to the centre of the eccentric shaft within a distance of 25 mm below it. The electric motor drives the shaft of the frame and thus imparts required vibration to the moulds.
Supplied complete with one 70.6 mm Cube Mould with loose base plate, a time switch 0-5 mins x 1 min.
Spares: Set of springs, belt and belt guard.
Optional: Digital Preset Timer can be supplied at an extra cost.
Standards: IS 4031 1968, IS 1344 1959, BS 4550.
