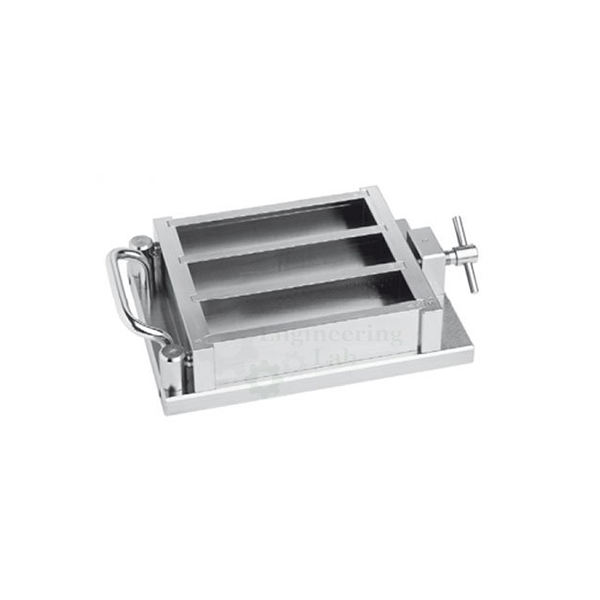

Hydraulic Shrinkage Mould

Hydraulic Shrinkage Mould

Product Code : EL-CTLE-10346

Quick Answer: Hydraulic Shrinkage Mould is a three-gang mould used to determine the linear shrinkage of cement mortars per EN 12617-4, with the shrinkage measurement taken using the Length Comparator. It is made of special alloy steel with a minimum hardness of HV200, individually tested with certified instruments, and the same mould can also be used for testing grouts conforming to EN 12808-4 and NF P15-413.

This version is used for the determination of linear shrinkage of cement mortars (EN 12617-4). It is a three gang mould, individually tested with certified instruments, and made of special alloy steel, minimum hardness HV200. The same mould can be used for testing grouts conforming to EN 12808-4 replacing the standard plugs with the mould and placing two 15x40x160 mm plastic inserts inside each compartment. The shrinkage measurement has to be done with the Length comparator.
Weight approx.: 12 kg

Standards: EN 12617-4 | EN 12808-4 | NF P15-413

Contact Engineering Lab Equipment for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned chemical engineering lab instruments supplier, chemical engineering lab equipment supplier, engineering lab instruments exporter, civil engineering lab equipment exporter, civil engineering lab instruments supplier, civil engineering lab equipments manufacturer in Ambala, India.

Last Updated: September 2026

Related Products: Laboratory Cement Autoclave, Cement Curing Cabinet, Automatic Vicat Apparatus, Mortar Mixer Machine, Reactivity Test Apparatus
