Product Code : EL-AMLE-10637
Engineering Labs Equipment is a leading Slotted Link Mechanism Apparatus Manufacturer,and suppliers in India, Slotted Link Mechanism Apparatus Uruguay (Montevideo), Slotted Link Mechanism Apparatus Uzbekistan (Tashkent), Slotted Link Mechanism Apparatus Venezuela (Caracas), Slotted Link Mechanism Apparatus Vietnam (Hanoi), Slotted Link Mechanism Apparatus Yemen (Sana'a), Slotted Link Mechanism Apparatus Zambia (Lusaka), Zimbabwe (Harare), Eswatini (Mbabane) (Lobamba), Ethiopia (Addis Ababa), Fiji (Suva), Gabon (Libreville), Gambia (Banjul), Georgia (Tbilisi), Ghana (Accra), India (Delhi, Mumbai, Kolkatta, Chennai), Indonesia (Jakarta), Iraq (Baghdad), Ivory Coast (Yamoussoukro), Jamaica (Kingston), Jordan (Amman), Kazakhstan (Astana), Kenya (Nairobi), Kiribati (Tarawa), Kosovo (Pristina), Kuwait (Kuwait City), Kyrgyzstan (Bishkek), Laos (Vientiane), Latvia (Riga), Lebanon (Beirut), Lesotho (Maseru), Liberia (Monrovia), Libya (Tripoli), Lithuania (Vilnuis), Luxembourg (Luxembourg), Malawi (Lilongwe), Malaysia (Federal Territory of Kuala Lumpur), Maldives (Malle), Mali (Federal Territory of Kuala Lumpur), Malta (Male), Mauritania (Nouakchott), Mauritius (Port Louis), Mexico (Mexico City), Mongolia (Ulaanbaatar), Bulgaria (Sofia), Burkina Faso (Ouagadougou), Burundi (Gitega), Cambodia (Phnom Penh), Cameroon (Yaoundé), Cape Verde (Praia), Central African Republic (Bangui), Chad (N'Djamena), Chile (Santiago), Colombia (Bogota), Comoros (Moroni), Congo (Kinshasa), Costa Rica (San José), Croatia (Zagreb), Cuba (Havana), Cyprus (Nicosia), Czech Republic (Prague), Denmark (Copenhagen) ,Djibouti (Djibouti City), Dominican Republic (Santo Domingo), DR Congo (Kinshasa), Ecuador (Quito), Egypt (Cairo), El Salvador (San Salvador), Equatorial Guinea (Malabo), Eritrea (Asmara), Estonia (Tallinn)

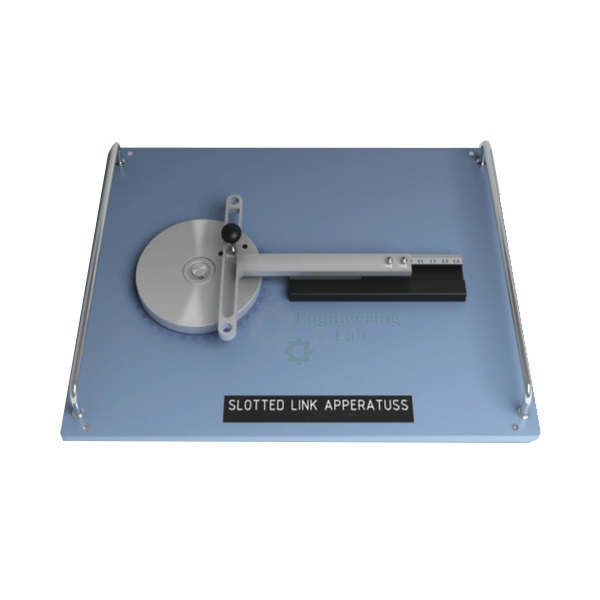

The demonstration model is used to generate and investigate pure harmonic reciprocating motion.

An anodised aluminium disc used as crank is mounted on ball bearings on a white plate.

This disc has a pointer so that the input angle can be exactly read on the integrated angle measuring scale.

The crank pin can be set at different radii on the disc.

The slider crank is attached to the crank pin on one side.

The model is equipped with plastic feet and is placed on the laboratory table for the experiment.

Two metal handles make the unit easier to carry.

On the other side the pin is mounted in straight guide that is fitted with a ruler to allow the output stroke to be read off with precision.

Specification :

Demonstration and laboratory experiment on harmonic reciprocating motion.

Aluminium crank disc, anodised, 3 different crank radii.

Anodised slider crank with 3 different output strokes.

Integrated angle measuring scale and ruler.

Learning Objectives / Experiments :

Conversion of smooth rotary motion into a purely harmonic reciprocating motion.

Influence of crank length and input angle on the output stroke.

Technical Data :

Crank radius: 25mm, 37.5mm, 50mm

Output stroke: 50mm, 75mm, 100 mm

Dimensions and Weight :

l x w x h : 380 x 280 x 100mm

Weight : approx. 3 kg
