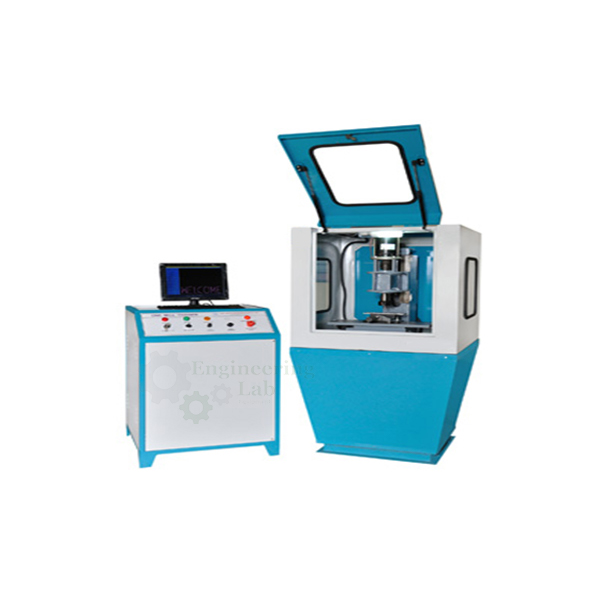

CNC Mill Trainer Manufacturer,Supplier and Exporter in India

Product Code : EL-CACLE-10871
Engineering Labs Equipment is a leading CNC Mill Trainer Manufacturer,and suppliers in India, CNC Mill Trainer Uruguay (Montevideo), CNC Mill Trainer Uzbekistan (Tashkent), CNC Mill Trainer Venezuela (Caracas), CNC Mill Trainer Vietnam (Hanoi), CNC Mill Trainer Yemen (Sana'a), CNC Mill Trainer Zambia (Lusaka), Zimbabwe (Harare), Eswatini (Mbabane) (Lobamba), Ethiopia (Addis Ababa), Fiji (Suva), Gabon (Libreville), Gambia (Banjul), Georgia (Tbilisi), Ghana (Accra), India (Delhi, Mumbai, Kolkatta, Chennai), Indonesia (Jakarta), Iraq (Baghdad), Ivory Coast (Yamoussoukro), Jamaica (Kingston), Jordan (Amman), Kazakhstan (Astana), Kenya (Nairobi), Kiribati (Tarawa), Kosovo (Pristina), Kuwait (Kuwait City), Kyrgyzstan (Bishkek), Laos (Vientiane), Latvia (Riga), Lebanon (Beirut), Lesotho (Maseru), Liberia (Monrovia), Libya (Tripoli), Lithuania (Vilnuis), Luxembourg (Luxembourg), Malawi (Lilongwe), Malaysia (Federal Territory of Kuala Lumpur), Maldives (Malle), Mali (Federal Territory of Kuala Lumpur), Malta (Male), Mauritania (Nouakchott), Mauritius (Port Louis), Mexico (Mexico City), Mongolia (Ulaanbaatar), Bulgaria (Sofia), Burkina Faso (Ouagadougou), Burundi (Gitega), Cambodia (Phnom Penh), Cameroon (Yaoundé), Cape Verde (Praia), Central African Republic (Bangui), Chad (N'Djamena), Chile (Santiago), Colombia (Bogota), Comoros (Moroni), Congo (Kinshasa), Costa Rica (San José), Croatia (Zagreb), Cuba (Havana), Cyprus (Nicosia), Czech Republic (Prague), Denmark (Copenhagen) ,Djibouti (Djibouti City), Dominican Republic (Santo Domingo), DR Congo (Kinshasa), Ecuador (Quito), Egypt (Cairo), El Salvador (San Salvador), Equatorial Guinea (Malabo), Eritrea (Asmara), Estonia (Tallinn)

CNC milling is a specific form of computer numerical controlled (CNC) machining.

Milling itself is a machining process similar to both drilling and cutting, and able to achieve many of the operations performed by cutting and drilling machines.

Like drilling, milling uses a rotating cylindrical cutting tool.

FEATURES:

Table Locking Facility with Stepper Motor.

Slide Motion through Recirculating Ball Screw.

Axis Limit Switches for Safety Interlocks.

Improper / Faulty Tool Operation Sequence is Detected.

Manually Operated MT2 Taper Collet Holder.

Circular Interpolation in X, Y Planes.

Program Entry through Keyboard, Via PC.

Single Block, Auto, Jog Modes for Execution.

Canned Cycle for Drilling, Peck Drilling, Slot Milling.

Emergency Stop is provided.

Depth of Cut 0.5 mm Only.

SPECIFICATION:

TABLE:

Size: 500 X 200 (Approx.).

T Slot: 10 mm.

AXES TRAVEL:

X Axis Traverse: 200 mm.

Y Axis Traverse: 160 mm.

Z Axis Traverse: 190 mm.

SPINDLE:

Spindle Speed: 100-1500 RPM.

Spindle Power: 0.5 HP.

CONTROLS:

Axes Control: 3 Axis (X, Y & Z Simultaneously).

Least Count: 0.005 mm.

Rapid Traverse Rate: 400 mm / Min.

Feed Rate: 0 – 200 mm / Min.

Axis Drive: DC Stepper Motor for all the Axis.

Programming: G, M, F, I, J, K.

Canned Cycle: Slot Milling, Rectangular.: ±0.050 mm.

Circular Pocket Milling: MT2.

Electrical Power: 230 V, 50 Hz.

DIMENSIONS AND WEIGHT:

Machine Dimensions (L x W x H) approx.: 800 x 600 x 1000 mm

Machine Weight approx.: 180kg
