Precision EDM Machine
Product Code : EL-CACLE-10877

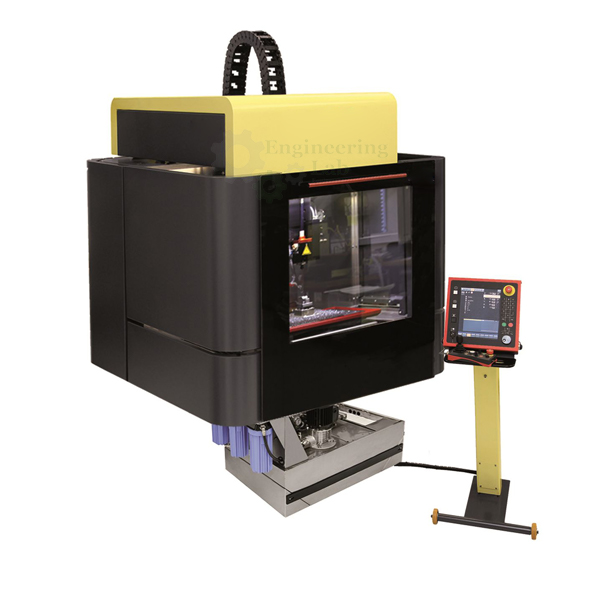

Precision EDM Machine (code EL-CACLE-10877) is an electrical discharge machining unit that uses electrical sparks to erode material to a required shape, with reverse sparking also possible and a current booster for high-speed drilling. It takes electrodes of 0.3 to 3.0 mm, special drilling electrodes from 3.1 to 10 mm and 1.0 mm × 400 mm brass electrodes, runs on 415 V, 3 phase, 50 Hz and has coolant pressure adjustable from 0 to 100 kg/cm².
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Obtaining the desired shape by electrical discharges (sparks); reverse sparks also possible |
| Features | |
| Design | Two part design, low working height |
| Axis guidance | Ball screw for X and Y axes; LM guideways for Z axis |
| Coolant pressure | Variable setting, 0 to 100 kg/cm² |
| Pressure safety | Safety pressure switch against over coolant pressure |
| Accumulator | Accumulator for constant pressure |
| Controller | Indigenous controller |
| Drive | DC stepper motor with belt drive |
| Deep drilling | Special circuit for deep drilling |
| Coolant system | Water tank with stainless steel body coolant pump |
| Safety interlock | Provided |
| Current booster | For high-speed drilling operation |
| Specification | |
| Electrodes | 0.3 to 3.0 mm |
| Brass electrodes | 1.0 mm dia. × 400 mm |
| Special drilling electrodes | 3.1 to 10 mm |
| Electrode material | 2 brass / copper |
| Bakelite guide | 1.0 mm, 2 nos. |
| Ruby guide | 0.0 to 3.0 mm |
| Rubber stoppers | 5 nos. |
| Machine lamp | 1 no. |
| Power supply | 415 V, 3 phase, 50 Hz |
| Dimensions and weight | |
| Machine dimensions | 1000 × 800 × 900 mm (L × W × H, approx.) |
| Machine weight | Approx. 180 kg |
| Supply | |
| Product code | EL-CACLE-10877 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Precision EDM Machine Used For?
Electrical discharge machining removes metal by a rapid series of sparks between an electrode and the work-piece, each spark melting and eroding a tiny amount of material, so hard conductive materials can be shaped or drilled without cutting forces. On this machine the operator selects an electrode, guided through the ruby or bakelite guide, sets the coolant pressure up to 100 kg/cm² and lets the stepper-driven axis feed the electrode into the work. The current booster speeds up drilling, the special circuit is used for deep holes, and the safety pressure switch and interlock guard the machine against excess coolant pressure and unsafe operation.
What to Specify When Ordering
- Quantity — the number of machines required.
- Drilling electrodes — the special drilling electrode sizes needed within the 3.1 to 10 mm range.
Frequently Asked Questions
What electrode sizes can be used?
Electrodes from 0.3 to 3.0 mm are used, along with brass electrodes of 1.0 mm diameter × 400 mm and special drilling electrodes from 3.1 to 10 mm.
What power supply does the machine need?
It runs on a 415 V, 3 phase, 50 Hz supply; the machine occupies roughly 1000 × 800 × 900 mm and weighs in the region of 180 kg.
How is the coolant system arranged?
Coolant comes from a water tank with a stainless steel body coolant pump, its pressure is set from 0 to 100 kg/cm², an accumulator keeps it constant and a safety switch guards against over pressure.
Which guides and other items are part of the specification?
The specification includes a 1.0 mm bakelite guide (2 nos.), a 0.0 to 3.0 mm ruby guide, 5 rubber stoppers and 1 machine lamp, along with the electrodes.
What helps with deep or fast drilling?
A special circuit is provided for deep drilling, and a current booster is fitted for high-speed drilling operation on the same machine.
How should a purchase enquiry for the Precision EDM Machine be sent?
Click Add To Cart on this page to raise an enquiry, or pass on the number of machines and the delivery location by way of the contact page.
