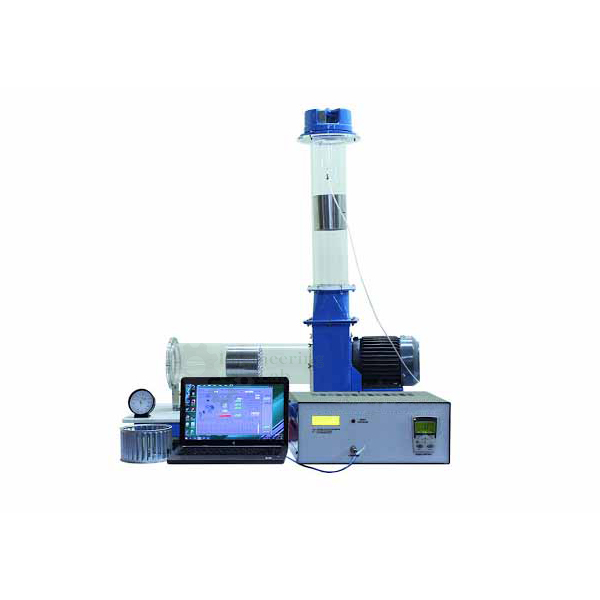

Axial Fan Demonstration Unit
Product Code : EL-FMLE-10647
QUICK ANSWER: This axial fan demonstration unit produces gas flow through momentum changes imparted across rotary blades parallel to the axis of rotation, making it more suitable for higher flows at lower delivery pressures than a centrifugal fan. It is mounted on a stainless steel plinth with transparent air inlet and outlet ducts for observing the fan in operation, a manually adjustable aperture for varying the airflow rate, and a calibrated orifice plate on the discharge to measure it. Electronic sensors monitor the pressure head across the fan, the pressure across the orifice plate (and hence the flow rate), fan rotational speed and air temperature, while the modulated DC supply driving the fan includes current sensing to measure the power it draws.
The advanced axial fan produces gas flow by virtue of the momentum changes imparted across the rotary blades, parallel to the axis of rotation, and such fans are more suitable for higher flows at lower delivery pressures than their centrifugal counterparts. The unit is mounted on a stainless steel plinth, with transparent air inlet and air outlet ducts that allow the fan construction to be clearly observed, and a manually operated adjustable aperture that allows the airflow rate to be varied.
A calibrated orifice plate on the discharge is used to measure the airflow rate, while electronic sensors measure the pressure head developed across the fan, the pressure across the orifice plate (and thus the flow rate), the rotational speed of the fan, and the air temperature. The fan speed is controlled by a modulated DC supply, complete with current sensing to allow the power drawn by the fan to be measured.
FEATURES :
Small-scale axial fan demonstration unit, comprising of an inlet duct, the fan, an outlet duct and an adjustable aperture, all mounted on a stainless steel base
Equipped with electronic measurement sensors for fan head pressure, flow rate (via orifice plate), fan speed and air temperature
Transparent ducts give visibility of the fan in operation
Capable of being linked to a PC via a USB interface console (an essential accessory), which does not require internal access to the computer.
Facilities for logging, processing and displaying data graphically
Offers a complete teaching package of coursework and laboratory investigation.
Also enables interfacing to other software packages
Supplied with software providing full instructions for setting up, operating, calibrating and performing the teaching exercises.
SPECIFICATIONS:
Max flow rate: 38 l/s typical
Max head: 0.06kPa
Max fan speed: 2,700rpm
Max head: 0.06kPa
Max fan speed: 2,700rpm
Motor power rating: 5W
Motor power rating: 5W
Max flow rate: 38 l/s typical
DIMENSIONS AND WEIGHT:
L x W x H: 850 x 450 x 950 mm
Weight: 90kg
