Centrifugal Fan Demonstration Unit

Product Code : EL-FMLE-10651
Engineering Lab Equipments is a leading Centrifugal Fan Demonstration Unit Manufacturer,and suppliers in India, Centrifugal Fan Demonstration Unit Manufacturer,and suppliers in South Africa.Centrifugal Fan Demonstration Unit Suppliers in Mozambique,Centrifugal Fan Demonstration Unit A quality product from Engineering Lab Equipments ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

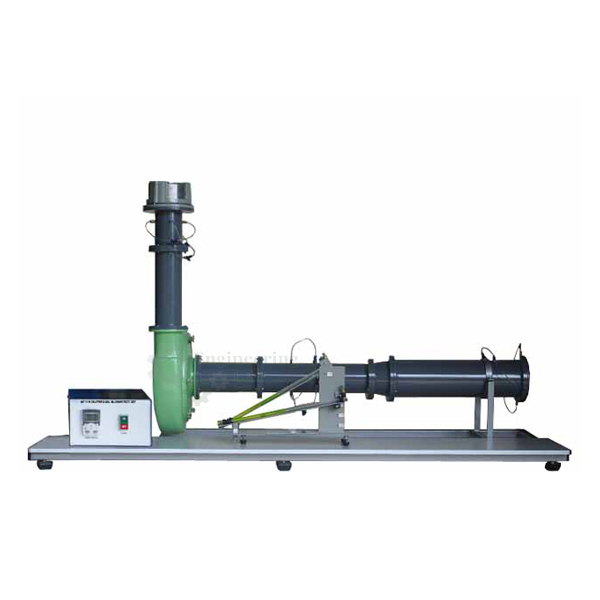

The Advanced experimental unit provides the basic experiments to get to know the operating behavior and the most important characteristic variables of radial fans.
Radial fans are used to transport gases with non-excessive pressure differences.
The medium is drawn in axially to the drive shaft of the radial fan and is deflected by 90° by the rotation of the rotor and discharged radially.
To demonstrate the effect of different blade shapes two rotors are included in the scope of delivery: one rotor with forward curved blades and one with backward curved blades.
The rotors are easily interchangeable.
The experimental unit is fitted with sensors for pressure and temperature.
The flow rate is determinate via differential pressure measurement on the intake nozzle.
The microprocessor-based measuring technique is well protected in the housing.
The measured values are transmitted directly to a PC via USB where they can be analyzed using the software included.

FEATURES:
Functioning and operating behavior of a radial fan
Radial fan with 3-phase AC motor
Determination of flow rate via intake nozzle
Display of differential pressure, flow rate, speed, electrical power consumption and hydraulically power output, temperature and efficiency
Variable speed via frequency converter
Transparent intake and delivery pipes
Throttle valve to adjust the air flow in the delivery pipe
Interchangeable rotors: 1 rotor with forward curved blades and 1 rotor with backward curved blades
Display and evaluation of the measured values as well as operation of the unit via software

SPECIFICATIONS:
Intake pipe :
Inner diameter: 90mm & Length: 430mm

Delivery pipe :
Inner diameter: 100mm & Length: 530mm

Measuring ranges :
Differential pressure: 0…1800Pa
Flow rate: 0…1000m3/h
Temperature: 0…100°C
Speed: 0…3300min-1
Electrical Power consumption: 0…250W
Power required: 230V, 50Hz, 1 phase

Radial fan :
Power consumption: 110W
Nominal speed: 2800min-1
Max. Volumetric flow rate: 480m3/h
Max. Pressure difference: 300Pa

DIMENSIONS AND WEIGHT:
L x W x H: 950-x450 x 900 mm
Weight: 90kg

Contact ELE for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned engineering lab instruments supplier, engineering lab equipments exporter, civil engineering lab equipments supplier, engineering lab equipment manufacturers, engineering lab equipment manufacturer, engineering lab instruments manufacturer in Ambala, India.
