Cavitation Demonstration Apparatus Manufacturer,Supplier and Exporter in India
Product Code : EL-FMLE-10650
Engineering Labs Equipment is a leading Cavitation Demonstration Apparatus Manufacturer,and suppliers in India,
The Advanced self-contained apparatus to demonstrate and observe the basic principles of cavitation and its implications on the performance of hydraulic machines and systems.

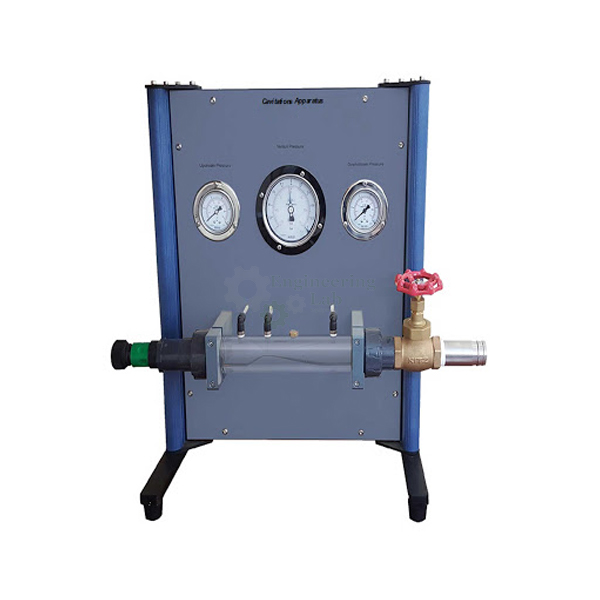

This accessory consists of a circular Venturi-shaped test section manufactured from clear acrylic to enable visualization inside the section.
As the flow of water increases the pressure at the throat falls in accordance with the Bernoulli equation until a limit is reached corresponding to the vapour pressure of the liquid.
At this low pressure small bubbles of vapour form then collapse violently as the pressure raises again downstream – a process called cavitation.
Bourdon gauges indicate the pressure upstream of the contraction, inside the throat and downstream of the expansion in the test section.
Flow control valves upstream and downstream of the test section enable the flow and pressure to be adjusted, enabling cavitation to be clearly demonstrated.
FEATURES:
Circular Venturi-shaped test section manufactured from clear acrylic for full visualization of cavitation
Observation of the phenomenon of cavitation in a liquid (by reducing the liquid to its vapour pressure)
Observation of air-release due to dissolved gases in a liquid
Demonstration of reducing cavitation by increasing the static pressure in a liquid
Three Bourdon gauges indicate the static pressure upstream of the contraction, inside the throat and downstream of the expansion in the test section
Comparison of theoretical and actual pressure at cavitation conditions
Flow-control valves upstream and downstream of the test section enable flow conditions to be optimized for the demonstration of cavitation
Quick-release fitting for easy connection to Hydraulics Bench
Educational software available as an option
The pump includes electrical protection and the water tank includes a splash cover to prevent water spillage.
SPECIFICATION:
Upstream pressure gauge:
Diameter: 63mm
Range: 0 to 1 bar
Throat vacuum gauge:
Diameter: 100mm
Range: -1 to 0 bar
Downstream pressure gauge:
Diameter: 63mm
Range: 0 to -1 bar
DIMENSIONS AND WEIGHT:
L x W x H: 500-x350 x 400 mm
Weight: 30kg
Contact ELE for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned civil engineering lab equipment manufacturer, civil engineering lab equipments exporter, civil engineering lab equipment supplier, chemical engineering lab instruments, civil engineering lab equipments suppliers, civil engineering lab equipments exporters in Ambala, India.
