Parallel and Counter Flow Heat Exchanger with Data Acquisition Manufacturer,Supplier and Exporter in India

Product Code : EL-HAMTLE-10765
Engineering Labs Equipment is a leading Parallel and Counter Flow Heat Exchanger with Data Acquisition Manufacturer,and suppliers in India, Parallel and Counter Flow Heat Exchanger with Data Acquisition Uruguay (Montevideo), Parallel and Counter Flow Heat Exchanger with Data Acquisition Uzbekistan (Tashkent), Parallel and Counter Flow Heat Exchanger with Data Acquisition Venezuela (Caracas), Parallel and Counter Flow Heat Exchanger with Data Acquisition Vietnam (Hanoi), Parallel and Counter Flow Heat Exchanger with Data Acquisition Yemen (Sana'a), Parallel and Counter Flow Heat Exchanger with Data Acquisition Zambia (Lusaka), Zimbabwe (Harare), Eswatini (Mbabane) (Lobamba), Ethiopia (Addis Ababa), Fiji (Suva), Gabon (Libreville), Gambia (Banjul), Georgia (Tbilisi), Ghana (Accra), India (Delhi, Mumbai, Kolkatta, Chennai), Indonesia (Jakarta), Iraq (Baghdad), Ivory Coast (Yamoussoukro), Jamaica (Kingston), Jordan (Amman), Kazakhstan (Astana), Kenya (Nairobi), Kiribati (Tarawa), Kosovo (Pristina), Kuwait (Kuwait City), Kyrgyzstan (Bishkek), Laos (Vientiane), Latvia (Riga), Lebanon (Beirut), Lesotho (Maseru), Liberia (Monrovia), Libya (Tripoli), Lithuania (Vilnuis), Luxembourg (Luxembourg), Malawi (Lilongwe), Malaysia (Federal Territory of Kuala Lumpur), Maldives (Malle), Mali (Federal Territory of Kuala Lumpur), Malta (Male), Mauritania (Nouakchott), Mauritius (Port Louis), Mexico (Mexico City), Mongolia (Ulaanbaatar), Bulgaria (Sofia), Burkina Faso (Ouagadougou), Burundi (Gitega), Cambodia (Phnom Penh), Cameroon (Yaoundé), Cape Verde (Praia), Central African Republic (Bangui), Chad (N'Djamena), Chile (Santiago), Colombia (Bogota), Comoros (Moroni), Congo (Kinshasa), Costa Rica (San José), Croatia (Zagreb), Cuba (Havana), Cyprus (Nicosia), Czech Republic (Prague), Denmark (Copenhagen) ,Djibouti (Djibouti City), Dominican Republic (Santo Domingo), DR Congo (Kinshasa), Ecuador (Quito), Egypt (Cairo), El Salvador (San Salvador), Equatorial Guinea (Malabo), Eritrea (Asmara), Estonia (Tallinn)

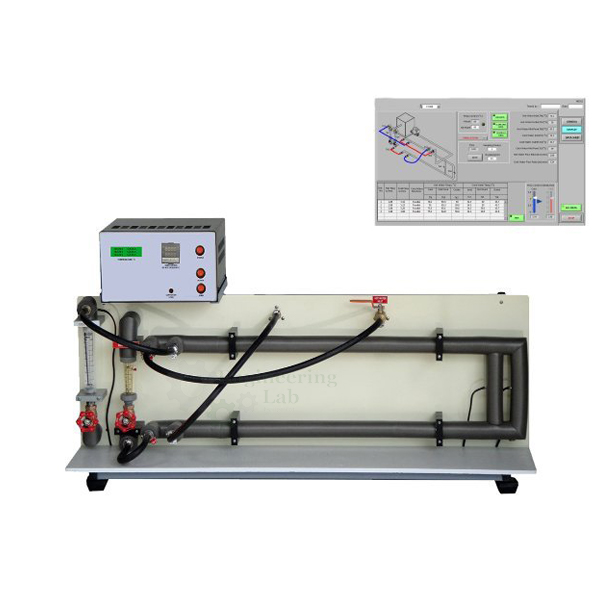

The apparatus is used for studying the heat transfer through a concentric tube under parallel or counter flow conditions.

The unit consists of a concentric tube heat exchanger, and a service module.

The module comprises a hot water tank with a transfer pump and instruments for monitoring and control.

The unit requires outside water supply.

The microprocessor-based instrumentation is well protected in the housing.

The software consists of software for system operation and for data acquisition and educational software is connected to the PC via USB.

Parallel or counter flow is by switching cold hoses valves.

FEATURES:

Demonstration of heat transfer under parallel and counter flow.

Determination of heat transfer coefficient.

Effects of flow rate and temperature difference.

Functions of the software: educational software, data acquisition, system operation

Useful for institutions, research laboratories & insulating powder manufactures.

SPECIFICATION:

Construction: 2 sections of insulated concentric stainless steel tubes.

Service module consisting of:

Hot water tank and pump.

Heater: 3000 W.

Temperatures: 6 ea.

Flow meters: Hot water and cold water.

Temperature control unit: 1 ea.

Stirrer: 0- 500 rpm

Measuring ranges :

Temperature: 2x 0…325°C

Heating power: 0…3000W

Required for Operation :

230V, 50Hz, 1 phase

230V, 60Hz, 1 phase; 120V, 60Hz, 1 phase

DIMENSIONS AND WEIGHT:

LxWxH (approx.): 1200x600x800mm

Weight (approx.): 40kg
