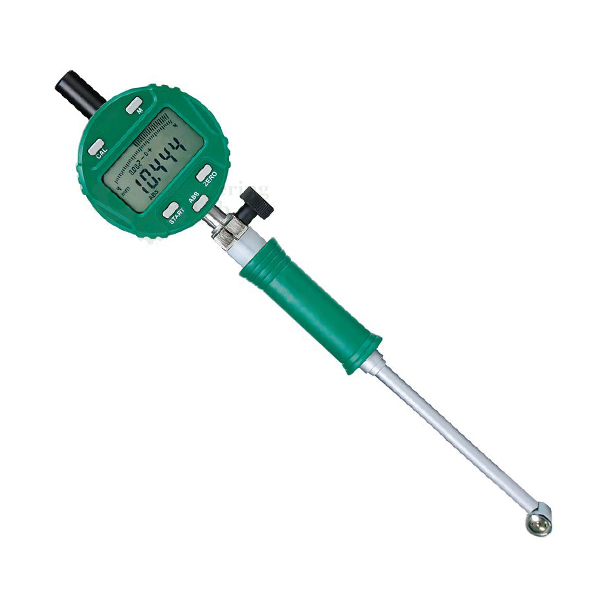

Digital Bore Gauge
Product Code : EL-MAILE-10842
Quick Answer: This Digital Bore Gauge is an Absolute Encoder Technology electronic gauge with IP54 protection that measures bores from 1.4″ – 6″ (36mm – 150mm) to a depth of 10″, letting users measure out-of-round conditions and tapers of cylinders without removing pistons. It reads in Inch or Metric with Auto Conversion on a Super Large LCD screen, offers 0.0003” / 0.008mm accuracy and 0.00005” / 0.001mm resolution and repeatability, and can be pre-set for master ring and minimum functions to conveniently indicate whether a measurement is out of set tolerance. It comes with a storage case, instructions, and an SPC/USB data port for use with an optional USB data cable.
This Extended Range Professional Precision Electronic Bore Gauge uses an absolute encoder digital indicator that always remembers and traces the absolute origin zero or preset data, and indicates absolute position as soon as it is turned on and ready to measure. Deep cylinder bore gauging to a depth of 10″ affords the user the ability to measure out-of-round conditions and tapers of cylinders without the necessity of removing pistons – the critical wear area of the cylinder can be reached with this gauge. It provides unlimited measuring speed and IP54 protection, an indicator face rotatable up to 330°, and comes with an SPC/USB data port that can be used with an optional USB data cable.
FEATURES:
Absolute Encoder Technology digital indicator w/ IP54 protection
Fast to read Max. / Min. measurement
Measure in Inch or Metric with Auto Conversion
Range: 1.4″ – 6″ or 36mm – 150mm
Measures bore to 10″ deep
Super Large LCD screen
Storage case included
Instructions Included
SPECIFICATION:
Absolute Encoder Technology digital indicator w/ IP54 protection
Accuracy: 0.0003” / 0.008mm
Measure in Inch or Metric with Auto Conversion – Range 1.4″ – 6″ or 36mm – 150mm
Resolution: 0.00005” / 0.001mm Accuracy: 0.0003” / 0.008mm
Repeatability: 0.00005” / 0.001mm
Pre-set for master ring and Minimum functions.
Convenience to indicate measurements whether out of set tolerance or not.
