Computerized Flow Control Trainer

Product Code : EL-MAILE-10801
Engineering Lab Equipments is a leading Computerized Flow Control Trainer Manufacturer,and suppliers in India, Computerized Flow Control Trainer Manufacturer,and suppliers in South Africa.Computerized Flow Control Trainer Suppliers in Mozambique,Computerized Flow Control Trainer A quality product from Engineering Lab Equipments ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

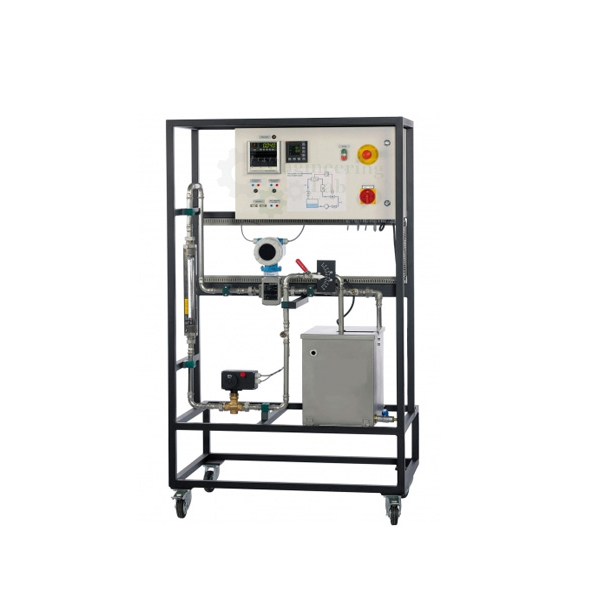

The Trainer provides a comprehensive experimental introduction to the fundamentals of control engineering using an example of flow control.
A pump delivers water from a storage tank through a piping system.
The flow rate is measured by an electromagnetic sensor, which permits further processing of the measured value by outputting a standardized current signal.
A Rota meter indicates the flow rate.
The controller used is a state-of-the-art digital industrial controller.
The actuator in the control loop is a control valve with electric motor operation.
A ball valve in the outlet line enables defined disturbance variables to be generated.
The controlled variable X and the manipulating variable Y are plotted directly on an integrated 2-channel line recorder.
Alternatively, the variables can be tapped as analogue signals at lab jacks on the switch cabinet.
This enables external recording equipment, such as an oscilloscope or a flatbed plotter, to be connected.

FEATURES:
Construction of the system with components commonly used in industry
Digital controller with freely selectable parameters: P, I, D and all combinations
Experimental introduction to control engineering using an example of flow control
Fundamentals of control engineering
Real industrial control engineering components: controllers, transducers, actuators

SPECIFICATION:
Storage tank: 30L
Centrifugal pump :
Power consumption: 250W
Flow rate: 150L/min
Head: 7m
Speed: 2800min-1
Rota meter: 0…1960L/h
Electromagnetic flow rate sensor: 0…6000L/h

Control valve with electric motor :
Kvs: 5,7m3/h
Stroke: 5mm
Characteristic curve equal-percentage
Valve-opening position sensor: 0…1000Ω

Line recorder :
2x 4…20mA
Feed rate: 0…7200mm/h, stepped

Controller :
Process variables X, Y as analogue signals: 4…20mA

Power required for operation :
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase

DIMENSIONS AND WEIGHT:
LxWxH: 1000x700x1750mm
Weight: approx. 110kg

Contact ELE for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned engineering lab instruments supplier, engineering lab equipments exporter, civil engineering lab equipments supplier, engineering lab equipment manufacturers, engineering lab equipment manufacturer, engineering lab instruments manufacturer in Ambala, India.

The Trainer provides a comprehensive experimental introduction to the fundamentals of control engineering using an example of flow control.
A pump delivers water from a storage tank through a piping system.
The flow rate is measured by an electromagnetic sensor, which permits further processing of the measured value by outputting a standardized current signal.
A Rota meter indicates the flow rate.
The controller used is a state-of-the-art digital industrial controller.
The actuator in the control loop is a control valve with electric motor operation.
A ball valve in the outlet line enables defined disturbance variables to be generated.
The controlled variable X and the manipulating variable Y are plotted directly on an integrated 2-channel line recorder.
Alternatively, the variables can be tapped as analogue signals at lab jacks on the switch cabinet.
This enables external recording equipment, such as an oscilloscope or a flatbed plotter, to be connected.

FEATURES:
Construction of the system with components commonly used in industry
Digital controller with freely selectable parameters: P, I, D and all combinations
Experimental introduction to control engineering using an example of flow control
Fundamentals of control engineering
Real industrial control engineering components: controllers, transducers, actuators

SPECIFICATION:
Storage tank: 30L
Centrifugal pump :
Power consumption: 250W
Flow rate: 150L/min
Head: 7m
Speed: 2800min-1
Rota meter: 0…1960L/h
Electromagnetic flow rate sensor: 0…6000L/h

Control valve with electric motor :
Kvs: 5,7m3/h
Stroke: 5mm
Characteristic curve equal-percentage
Valve-opening position sensor: 0…1000Ω

Line recorder :
2x 4…20mA
Feed rate: 0…7200mm/h, stepped

Controller :
Process variables X, Y as analogue signals: 4…20mA

Power required for operation :
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase

DIMENSIONS AND WEIGHT:
LxWxH: 1000x700x1750mm
Weight: approx. 110kg

Contact ELE for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned engineering lab instruments supplier, engineering lab equipments exporter, civil engineering lab equipments supplier, engineering lab equipment manufacturers, engineering lab equipment manufacturer, engineering lab instruments manufacturer in Ambala, India.
