Drill Tool Dynamometer
Product Code : EL-MAILE-10864
Quick Answer: The Drill Tool Dynamometer is an armed wheel type, strain gauge based instrument used to measure thrust and torque during a drilling operation, along with the effect of speed and feed on these cutting forces, for workpieces drilled up to 20 mm diameter. It consists of a mechanical sensing unit (test piece/job holder) fitted with strain gauges, paired with a two-channel digital force indicator that displays thrust (0 to 200 Kg) and torque (0 to 20.0 Kg m, least count 0.1 Kg m) simultaneously. As a machine-tool dynamometer, it allows empirical drilling-force calculations to be crosschecked and verified experimentally.

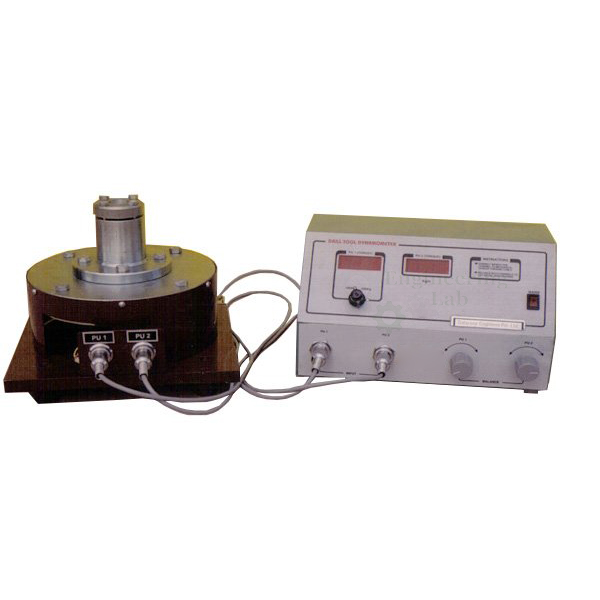

This armed wheel type strain gauge based Drill Tool Dynamometer is designed to measure thrust and torque during a drilling operation, along with the effect of speed and feed on these cutting forces. The unit consists of a mechanical sensing unit, or test piece holder, and a digital force indicator, with the job mounted on a workpiece holder on the mechanical sensing unit; it is useful for drilling up to 20 mm diameter. A machine-tool dynamometer of this kind is a multi-component dynamometer used to measure forces during the use of the machine tool, and empirical calculations of these forces can be crosschecked and verified experimentally using these machine tool dynamometers.
FEATURES:
Rigid in construction & Sensitive transducing and amplifying system for accuracy in force measurement.
Compact two-channel digital force indicator.
Use of cutting fluid during operation is possible.
SPECIFICATION:
Mechanical Sensing Unit with Job Holder with strain Gauges mounted on it.
Balancing Potentiometer for initial balancing.
Control panel housing digital force indicator to measure both forces simultaneously, connecting cables.
Digital Force Indicator – two channel, to read both thrust and torque simultaneously.
Range – thrust – 0 to 200 Kg, torque – 0 to 20.0 Kg m, least count – 0.1 Kg m.
Necessary switches, fuses and screen-printed front plate.
The set up is calibrated at our works.
