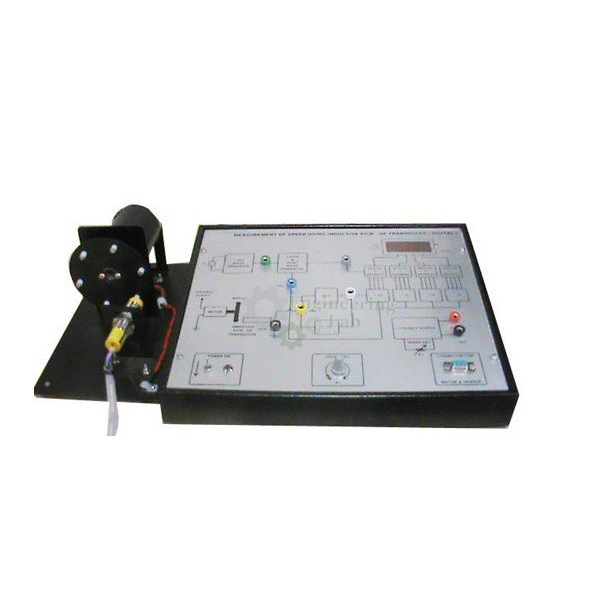

Speed Measurement Trainer
Product Code : EL-MAILE-10810
Quick Answer: The Speed Measurement Trainer is a rotational-speed measurement trainer built around a fractional-HP motor with a speed regulator driving a 60-tooth tone wheel, together with photo-reflective and magnetic pickup sensors and a digital speed indicator, all fitted rigidly on a base. Three different speed sensors, a photoelectric sensor, an electromagnetic proximity sensor, and a DC tachometer generator, are mounted so that they measure the same rotating shaft speed at once, letting students directly compare how each sensor type performs, with motor speed control provided via a front-panel potentiometer (approx. 1500 RPM on a 12V DC supply).
The speed measurement trainer equipment comprises photo reflective and magnetic pickup sensors, a fractional HP motor with speed regulator, and tone wheels of 60 teeth fitted rigidly on a base with a digital speed indicator.
The speed sensors used are: Photoelectric sensor, Electromagnetic Proximity sensor, and DC Tachometer Generator.
The different sensors are mounted in a position where they can measure the same speed of the rotating shaft; as a result the student will be able to note the differences between them. The product is of high quality.
FEATURES:
Fine quality
Easy to use
Easy to install
SPECIFICATION:
Copper wheel with 60 slots Tone Wheel MS Gear wheel of 60 Teeth,
Copper wheel with 60 slots Sensor Non- Contact Magnetic Pickup & Op
Motor Capacity: 12V DC Motor Max.
Motor Speed: 1500 RPM (approx.)
Motor input Supply12V DC.
Motor Speed Control Using POT.
MS Gear wheel of 60Teeth,
Power required for operation
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase
DIMENSIONS AND WEIGHT:
LxWxH: 400x300x300mm
Weight: approx. 15kg
