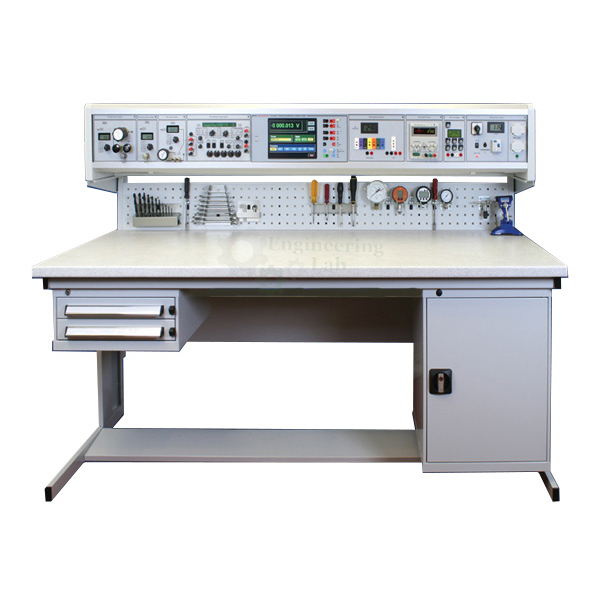

Electrical, Electronic Pneumatic Calibration Bench

Product Code : EL-MAILE-10806

Quick Answer: The Electrical, Electronic and Pneumatic Calibration Bench is a training console built around a set of instruments that gives learners full hands-on exposure to maintaining and calibrating the pneumatic and electronic instrumentation that forms the basis of process control. It provides practical calibration experience across pressure gauges, pressure switches, thermostats, and a wide range of pneumatic and electronic differential-pressure, level, indicator, and recorder transmitters, and it includes a painted carbon steel structure with 4 precision pressure gauges, a manual control station, a digital multimeter, a signal generator, a DC power supply, thermocouple and RTD simulators, and precision pressure reducers with multiple pressure outputs for calibration work.

The test bench consists of a console and a set of instruments, designed to give the learner full exposure in the maintenance and calibration of the pneumatic and electronic instrumentation which form the basis of process control.

FEATURES:

The equipment provides practical experience in calibrating :

Pressure gauges

Pressure switches

Thermostats

Pneumatic differential pressure transmitters

Electronic differential pressure transmitters

Pneumatic pressure transmitters

Electronic pressure transmitters :

Pneumatic indicators

Electronic indicators

Pneumatic level transmitters

Electronic level transmitters

Pneumatic recorders

Electronic recorders

Electronic indicators/controllers

Pneumatic indicators controllers

Hydrostatic thrust level transmitters

Capacitive probe level transmitters

Pneumatic valves

Positioners

SPECIFICATION:

Painted carbon steel structure

4 precision pressure gauges, -1 – 0, 0 – 1.6, 0 – 4 and 0-10, class 0.25%

1 manual control station, complete with precision pressure gauge

Digital multimeter, accuracy ±0.03%, current range 20 A,

Voltage range: 1200 V

Signal generator: 4 – 20 mA

Power supply: 12-24-48 V D.C.

Voltage control: 0 – 200 V

Thermocouples simulator

3 precision pressure reducers

12 pressure outputs

2 differential pressure glass manometers, height = 1000 mm,

Stainless steel sleeve

RTDs simulator

Power required for operation

230V, 50Hz, 1 phase

230V, 60Hz, 1 phase

DIMENSIONS AND WEIGHT:

LxWxH: 2000x100x1500mm

Weight: approx. 150kg
