Core Drilling Machine (Petrol) Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : EL-BTLE-10420
Engineering Lab Equipments is a leading Core Drilling Machine (Petrol) Manufacturer,and suppliers in India, Core Drilling Machine (Petrol) Manufacturer,and suppliers in South Africa.Core Drilling Machine (Petrol) Suppliers in Mozambique,Core Drilling Machine (Petrol) A quality product from Engineering Lab Equipments ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

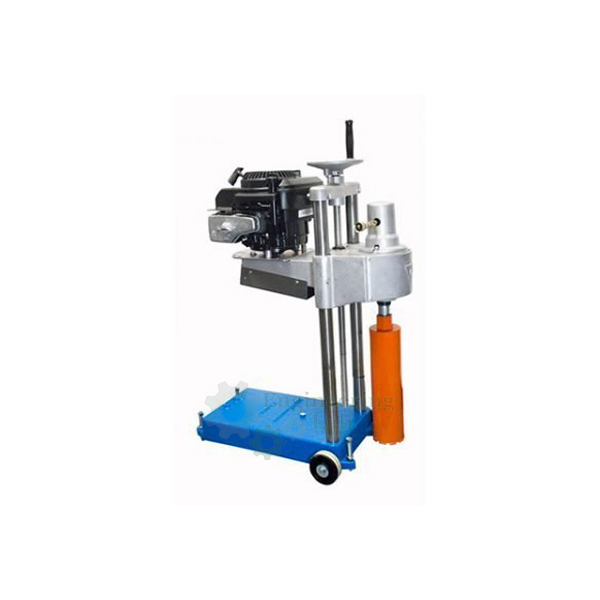

The Pavement core drilling machine is produced to cut cores up to 200 mm diameter from concrete, asphalt and similar hard construction materials.
The machine comprises a vertical support column which carries the drill head/motor assembly.
The motor assembly comprises a 6.5 Hp 4 stroke high quality petrol engine.
A ball screw mechanism enables close control of the drilling pressure and rapid return.
A water spraying assembly is mounted on the machine.
The complete assembly is supplied on a rigid wheel mounted metal base frame with leveling and fixing facility during the operation.
Coring Bits should be ordered separately.
Technical Specifications :
Drill speeds : 900 R.P.M. for soft samples and 350 R.P.M. for hard Samples
Head travel on rack : 500mm
Water swivel : Built in the machines.
Dimension approx, are as under:
Height : 1300 mm
Base : 625 x 900 mm
Accessories :
Thin wall diamond bits.
Core barrel.
Petrol engine 190 cc
Standards: EN 12697-27
Contact ELE for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned engineering lab equipments, engineering equipment manufacturer india, engineering equipment india, chemical engineering lab equipments, control engineering laboratory equipments, control engineering laboratory equipment, control engineering lab equipment in Ambala, India.
