Marshall Stability Test Apparatus Manufacturer,Supplier and Exporter in India

Product Code : EL-BTLE-10421
Engineering Labs Equipment is a leading Marshall Stability Test Apparatus Manufacturer,and suppliers in India, Marshall Stability Test Apparatus Uruguay (Montevideo), Marshall Stability Test Apparatus Uzbekistan (Tashkent), Marshall Stability Test Apparatus Venezuela (Caracas), Marshall Stability Test Apparatus Vietnam (Hanoi), Marshall Stability Test Apparatus Yemen (Sana'a), Marshall Stability Test Apparatus Zambia (Lusaka), Zimbabwe (Harare), Eswatini (Mbabane) (Lobamba), Ethiopia (Addis Ababa), Fiji (Suva), Gabon (Libreville), Gambia (Banjul), Georgia (Tbilisi), Ghana (Accra), India (Delhi, Mumbai, Kolkatta, Chennai), Indonesia (Jakarta), Iraq (Baghdad), Ivory Coast (Yamoussoukro), Jamaica (Kingston), Jordan (Amman), Kazakhstan (Astana), Kenya (Nairobi), Kiribati (Tarawa), Kosovo (Pristina), Kuwait (Kuwait City), Kyrgyzstan (Bishkek), Laos (Vientiane), Latvia (Riga), Lebanon (Beirut), Lesotho (Maseru), Liberia (Monrovia), Libya (Tripoli), Lithuania (Vilnuis), Luxembourg (Luxembourg), Malawi (Lilongwe), Malaysia (Federal Territory of Kuala Lumpur), Maldives (Malle), Mali (Federal Territory of Kuala Lumpur), Malta (Male), Mauritania (Nouakchott), Mauritius (Port Louis), Mexico (Mexico City), Mongolia (Ulaanbaatar), Bulgaria (Sofia), Burkina Faso (Ouagadougou), Burundi (Gitega), Cambodia (Phnom Penh), Cameroon (Yaoundé), Cape Verde (Praia), Central African Republic (Bangui), Chad (N'Djamena), Chile (Santiago), Colombia (Bogota), Comoros (Moroni), Congo (Kinshasa), Costa Rica (San José), Croatia (Zagreb), Cuba (Havana), Cyprus (Nicosia), Czech Republic (Prague), Denmark (Copenhagen) ,Djibouti (Djibouti City), Dominican Republic (Santo Domingo), DR Congo (Kinshasa), Ecuador (Quito), Egypt (Cairo), El Salvador (San Salvador), Equatorial Guinea (Malabo), Eritrea (Asmara), Estonia (Tallinn)

The Marshall Stability Test Equipment is used by contractors, testing laboratories engineers, highway departments, and other government agencies to test the stability of bituminous samples.

It is designed for measuring resistance to plastic flow of cylindrical specimens of bituminous paving mixture loaded on the lateral surface.

The machine can deliver measurement data for use with hot mixture consisting of asphalt or tar and aggregate up to 25.4 mm maximum size.

The equipment has a bench top loading frame with a screw-driven modifiable crosshead.

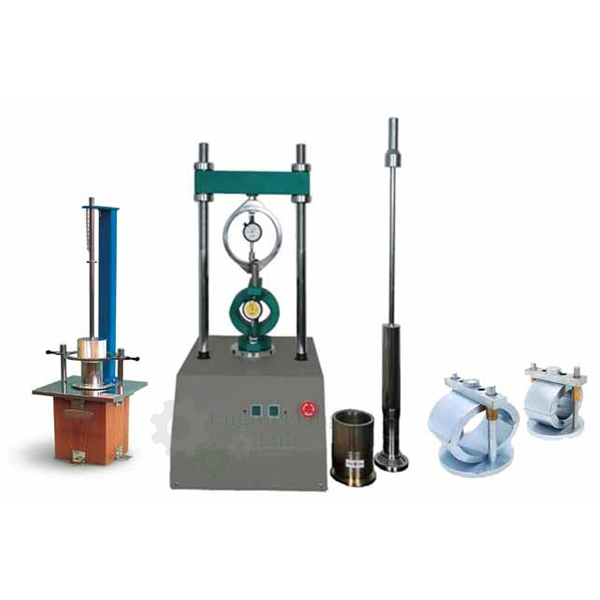

Marshall Apparatus Consists Of:

Robust construction

50KN capacity

Rate of travel 50.8mm/min

Safety cut-off switch

It consists of body housing, a geared screw jack and motor drive mechanism suitable for operation on 230 V, 50Hz, Single Phase, A.C. supply.

MARSHALL LOAD FRAME 1 No.

Breaking Head Stability Mould, with a dial gauge ( having 25mm travel and 0.01mm least count), for flow measurement 1 No.

Compaction Mould, Steel cylindrical 3 Nos.

Compaction Hammer, satisfies BS 598.

The hammer has a 4535 g sliding weight with a free fall of 457 mm 2 Nos.

Base Plate 3 Nos.

Extension Collar 3 Nos.

Compaction Pedestal, Manual Operation, Comprising a steel plate capped on a wooden post.

A Mould Clamp is fitted to the top of the plate . 1 No.

Load Transfer Bar 1 No.

Paper Discs, Non absorbent, 11 cm diameter pack of 100 No. 1 Pkt.

Standards: EN 12697-34 | ASTM D1559 | AASHTO T245-T2833 | BS 598 | NF P98-252-2 | DIN 1996
