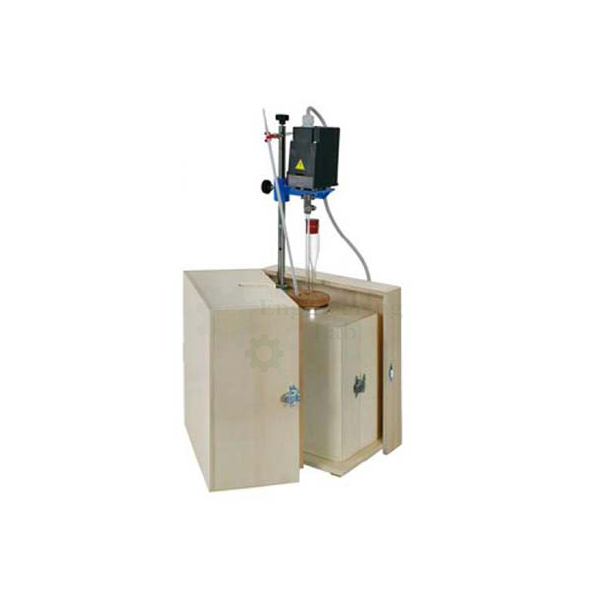

Calorimeter for Cement and Concrete
Product Code : EL-CTLE-10356
Quick Answer: The Solution Calorimeter for Cement and Concrete provides direct determination of the heat of hydration (J/g) of cement, analyzing the setting behaviour of building materials such as cement and mortar. It features a steel-housed, self-calibrating design with a fully-automatic, computer-controlled test procedure conforming to EN 196-8, ASTM C 186 and BS 4550. The unit consists of a Dewar vessel in an insulation wooden box, an electrically driven stirrer and a funnel, weighs 15 kg, measures 350 x 250 x 680 mm, and operates on 230V/50Hz power.
The Solution Calorimeter for Cement and Concrete is an instrument used to analyze the setting behaviour of building materials such as cement and mortar, providing direct determination of the heat of hydration (J/g) of cement. It is designed with a steel housing to protect the samples from environmental heat fluctuation as well as specimen-to-specimen heat transfer, and each measuring cell is fitted with a heating element and thermoelectric conductive measuring chains for heat output readings. With the rigid control of a computer control system, it is able to determine the rate of heat generation with respect to time.
Special Features of the Solution Calorimeter for Cement and Concrete :
Evaluation and documentation of test results via computer
Fully-automatic test procedure
Rigid, durable measuring instrument for industrial and laboratory use
Simple operation
Self-calibrating
Control Device
From the beginning of the test, the control device operates the procedure with a direct interface. The control stabilizes the thermal signal and amplifies it to a measurable voltage, and it also monitors the internal measuring cell temperature, with all data logged on an internal drive for later download.
Technical Specifications for the Solution Calorimeter for Cement and Concrete :
EN 196-8, ASTM C 186, BS 4550
Consists of a Dewar vessel, which is located in an insulation wooden box, an electrically driven stirrer with constant speed and a funnel. (Dewar vessel can be easily removed from the wooden box and replaced.)
Power: 230V / 50Hz
Dimensions: 350 x 250 x 680 mm
Weight: 15 kg
Standards: EN 196-8, ASTM C 186, BS 4550
