Slump Test Apparatus
Product Code : EL-CTLE-10286

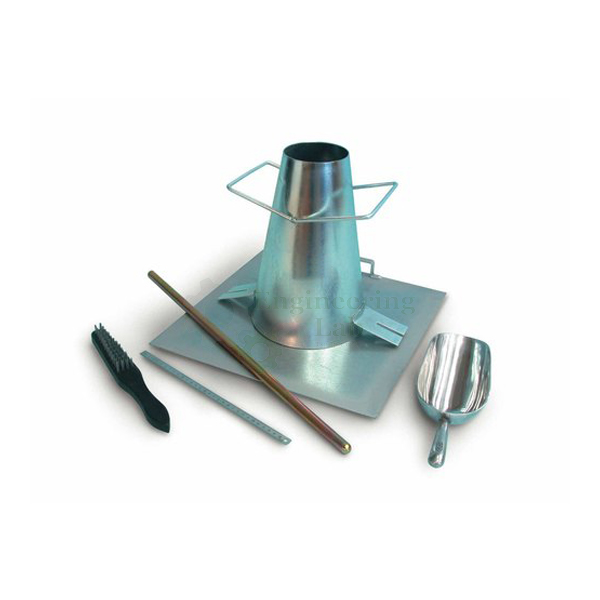

Slump Test Apparatus (code EL-CTLE-10286) is a set for carrying out the concrete slump test in the laboratory or on site, a check on how consistent and workable fresh concrete is that also points indirectly to its water/cement ratio. Its cone has internal dimensions of 200 mm diameter at the base, 100 mm at the top and 300 mm height, sits on a base plate with clamps and a lifting handle, and comes with a 16 mm × 600 mm graduated steel rod.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Test | Concrete slump test: consistency and workability of fresh concrete, and indirectly the water/cement ratio of the mix |
| Place of use | Laboratory or field |
| Slump cone | Internal dimensions 200 mm dia at base, 100 mm top dia, 300 mm height |
| Cone fixing | Foot pieces fix to the clamps on the base plate |
| Base plate | Fitted with a lifting handle for carrying |
| Rod | One steel rod, 16 mm dia × 600 mm long, rounded at both ends and graduated in mm |
| Accessories offered | Scoops, trowels, brushes, measuring tapes and funnel |
| Supply options | Individual products, or the required components chosen as slump test sets |
| Standards | IS 7320, BS 1881-102, ASTM C143, AASHTO T11 |
| Product code | EL-CTLE-10286 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Slump Test Apparatus Used For?
The slump test is a widely used site and laboratory check on fresh concrete: a cone filled with concrete is lifted away, and the drop in height of the concrete, the slump, shows how stiff or fluid the mix is. The cone is clamped to the base plate by its foot pieces and filled in layers, each one rodded with the steel rod; the top is struck off, the clamps are released and the cone is lifted straight up. The slump is then measured with the graduated rod, and a change from one batch to the next points to a change in water content. The standards listed are IS 7320, BS 1881-102, ASTM C143 and AASHTO T11.
What to Specify When Ordering
- Quantity — the number of slump test sets required.
- Accessories — any scoops, trowels, brushes, measuring tapes or funnel wanted with the cone.
Frequently Asked Questions
What does the slump test show about fresh concrete?
It measures the consistency and workability of fresh concrete and gives an indirect indication of the water/cement ratio, so batches that are too wet or too stiff can be picked out.
What are the dimensions of the slump cone?
Inside, the cone measures 200 mm across at the base and 100 mm across at the top, with a height of 300 mm.
Which rod is supplied with the cone?
One steel rod, 16 mm in diameter and 600 mm long, is included. Both of its ends are rounded and its length is graduated in mm for reading the slump.
How is the cone held down while it is being filled?
Foot pieces on the cone fix into the clamps on the base plate and hold it in place during filling; the base plate also has a lifting handle for carrying.
Can the slump apparatus be used outside the laboratory?
Yes, the slump testing equipment is meant for testing in the laboratory or in the field, and the lifting handle on the base plate helps when moving it around a site.
Which standards are listed for the slump apparatus?
The standards listed are IS 7320, BS 1881-102, ASTM C143 and AASHTO T11 for this cone, base plate and rod set.
OEM Manufacturer
Buyers of the Slump Test Apparatus deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
