Concrete Flow Table Test Set Manufacturer,Supplier and Exporter in India

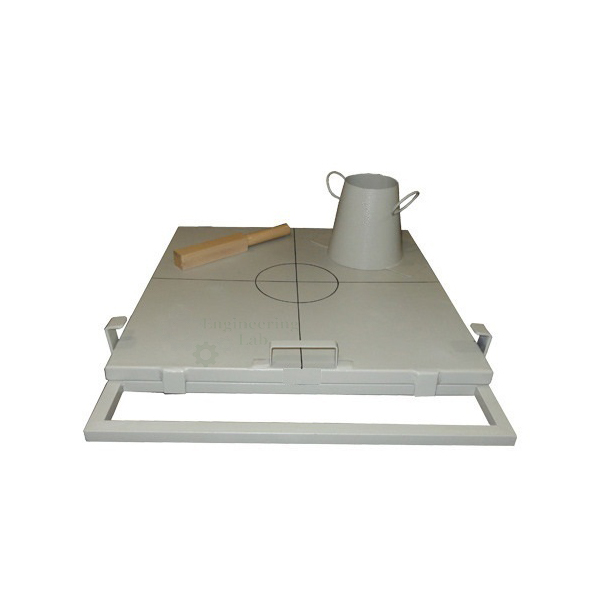

Concrete Flow Table Test Set

Product Code : EL-CTLE-10913

Concrete flow table test set for judging the strength and stability of concrete specimens of diversity.
Our machine has been developed as per the international standards EN 12350-5.
It is used for high capacity concrete mix and to maintain a flow index by the means of arithmetic.
The dimension of the apparatus is 700 X 850 X 300 mm and the weight is 40 kg.
Between the two tables, the measurement of the upper table is 700 X 700 mm.
The top diameter of the stainless steel cone is 130 +/- 2; the height and base diameter are both 200 +/- 2 and its thickness is 1.5 mm.

Specification :
The apparatus is made of a double steel table.
The flow index is shown in the arithmetic count.
The top table is corrosion protected.
The upper table is hinged on the lower one.

Quality standard of the products :
The Concrete flow table test set is manufactured by the means of International standard EN 12350-5.

Contact ELE for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned civil engineering lab equipment manufacturer, civil engineering lab equipments exporter, civil engineering lab equipment supplier, chemical engineering lab instruments, civil engineering lab equipments suppliers, civil engineering lab equipments exporters in Ambala, India.
