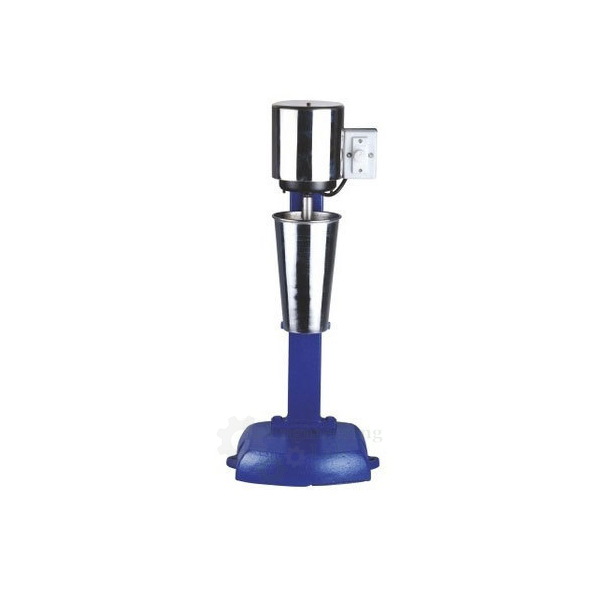

High Speed Stirrer
Product Code : EL-STLE-10936
High Speed Stirrer (code EL-STLE-10936) is a laboratory stirrer used for the mechanical analysis of soils and for other mixing work, running at approximately 4000 RPM under load on 230 V AC. Its saw tooth, impeller or propeller blades are balanced for high speed, and it comes with a dispersion cup or baffle cup; the dispersion cup rests on the stand and has a removable baffle.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Mechanical analysis and other laboratory applications |
| Industries served | Chemical, pharmaceutical, food, dairy, paints, coatings, pigments, varnish and adhesives |
| Speed | Approx. 4000 RPM under load |
| Motor speeds | Provided in different capacities of motor speeds |
| Blade types | Saw tooth, impeller or propeller, balanced to run at high speed |
| Power supply | 230 V AC |
| Supplied with | Dispersion cup or baffle cup |
| Cup support | Dispersion cup supported on a rest on the stirrer stand |
| Baffle | Removable |
| Standards | IS 2720 (Part IV) |
| Product code | EL-STLE-10936 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the High Speed Stirrer Used For?
Before a sedimentation test the fine fraction of a soil has to be broken down into separate particles, and soaking in a dispersing agent alone is often not enough to do this. A portion of the soil with water and dispersant is placed in the dispersion cup, which sits on the rest on the stirrer stand, and stirred at about 4000 RPM; the baffle stops the mix simply swirling round, so the particles are separated. The suspension then goes on to hydrometer or pipette analysis. The standard listed for this stirrer is IS 2720 (Part IV).
What to Specify When Ordering
- Quantity — the number of stirrers required.
- Blade and cup — the blade type (saw tooth, impeller or propeller) and whether a dispersion cup or a baffle cup is wanted.
Frequently Asked Questions
What speed does the High Speed Stirrer run at?
It stirs at approximately 4000 RPM under load, and the stirrer is also offered in different capacities of motor speed for other applications.
Which blades can be fitted?
Saw tooth, impeller and propeller blades can be used with the stirrer, and each type is balanced so that it runs smoothly at high speed.
What cup is supplied with the stirrer?
It comes with a dispersion cup or a baffle cup. The dispersion cup rests on the stirrer stand and has a removable baffle.
Where else is this type of stirrer used?
Besides soil mechanical analysis, high speed stirrers of this kind serve mixing needs in the chemical, pharmaceutical, food, dairy, paint, coating, pigment, varnish and adhesive industries.
Which standard is listed for it?
The standard listed for the stirrer is IS 2720 (Part IV), the Indian method for grain size analysis of soils.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the High Speed Stirrer at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its soil testing equipment for classification, compaction, density, shear and consolidation tests go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
Related Soil Testing Equipment
- Particle Size Analysis Set, Hydrometer Method — hydrometer sedimentation set with six 1000 ml cylinders, 151H hydrometer, heated tank and stirrer.
- Particle Size Analysis Set, Pipette Method — screw-driven Anderson pipette stand with mm depth scale for sub-sieve soil particle size analysis.
- Pycnometer — 1 kg glass jar with brass cone, locking ring and rubber seal for testing soil and aggregates.
See the full Soil Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other soil testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of stirrers, the blade type and the cup required and the delivery location through the contact page; the Add To Cart button on this page also adds the High Speed Stirrer to an enquiry.
