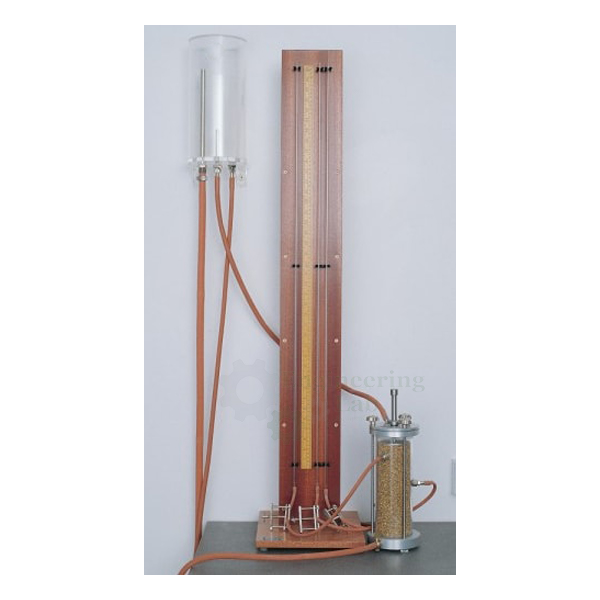

Falling Head Permeability Apparatus
Product Code : EL-STLE-10374
Falling Head Permeability Apparatus (code EL-STLE-10374) is a laboratory apparatus for finding the permeability of soil by the falling, or variable, head method. It is recommended for soils with a coefficient of permeability of 10^-3 to 10^-7 cm/sec and takes soil with a maximum particle size of 10 mm in its mould.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Laboratory determination of soil permeability by the falling (variable) head method |
| Permeability range | Coefficient of permeability 10^-3 to 10^-7 cm/sec |
| Maximum particle size | 10 mm, for soil tested in the mould |
| Standards | BS 1377, ASTM 46-47, IS 2720 (Part XVII) 1966 |
| Product code | EL-STLE-10374 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Falling Head Permeability Apparatus Used For?
Fine grained soils let water through too slowly for the outflow to be collected conveniently under a constant head, so the falling head method is used for them. In a falling head test the water level in a standpipe above the sample is allowed to drop as water seeps down through the soil, and the time taken for the level to fall between two marks is recorded. The coefficient of permeability is then worked out from that time, the areas of the standpipe and sample and the sample length, showing how readily water drains through the soil.
What to Specify When Ordering
- Quantity — the number of falling head sets required.
Frequently Asked Questions
What does the falling head test measure?
It measures the coefficient of permeability of a soil sample, that is, how readily water flows through it, by timing the fall of a water level above the sample.
Which permeability range is the apparatus recommended for?
The test is recommended for soils whose coefficient of permeability lies between 10^-3 and 10^-7 cm/sec.
How coarse can the soil sample be?
Soil tested in the mould of this apparatus may have a maximum particle size of 10 mm.
Which standards are named for the falling head method here?
On this apparatus, the standards listed are BS 1377, ASTM 46-47 and IS 2720 (Part XVII) 1966.
How can this apparatus be ordered?
Use the Add To Cart enquiry button on this page, or send the quantity required and the delivery location through the contact page.
OEM Manufacturer
The Falling Head Permeability Apparatus is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests soil testing equipment for classification, compaction, density, shear and consolidation tests for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
