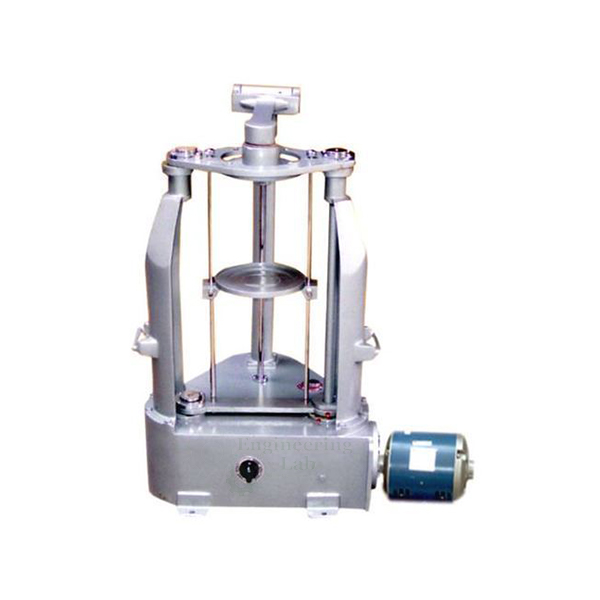

Sieve Shaker Rotap Type
Product Code : EL-STLE-10945
Sieve Shaker Rotap Type (code EL-STLE-10945) is a motorised sieve shaker that moves a stack of sieves in a circular path while tapping them at the same time, to make sieving simpler and quicker. It holds up to 7 sieves of 150 mm or 200 mm diameter, its circular-motion and tapping mechanism runs immersed in oil in a tank, and it works on 230 V AC single phase.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Action | Circular shaking of the sieves with simultaneous tapping |
| Sieve capacity | Up to 7 sieves of 150 mm or 200 mm diameter |
| Mechanism | Circular action and tapping mechanism immersed in oil in a tank |
| Drive | Motorised |
| Power supply | 230 V AC, single phase |
| Product code | EL-STLE-10945 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Sieve Shaker Rotap Type Used For?
Combining a circular motion with tapping keeps particles moving across the mesh and knocks grains lodged in the apertures back onto the surface, so that each fraction settles on the right sieve. The operator stacks up to 7 sieves of 150 mm or 200 mm diameter, places the nest in the shaker and runs it for the time the test method requires, then weighs the material held on each sieve. The oil bath keeps the gear mechanism lubricated while it works.
What to Specify When Ordering
- Quantity — the number of Rotap shakers required.
- Sieve diameter — whether 150 mm or 200 mm sieves are to be used in the shaker.
Frequently Asked Questions
How does a Rotap sieve shaker move the sieves?
It shakes the sieves in a circular motion and taps them at the same time, which makes the sieving process simpler and quicker than doing it by hand.
How many sieves can it take?
The shaker accommodates up to 7 sieves in one stack, of either 150 mm or 200 mm diameter.
What powers the mechanism?
The mechanism that produces the circular action and tapping is motorised and runs immersed in oil in a tank, on a 230 V AC single phase supply.
What should be included in an export enquiry?
An export enquiry should state how many shakers are needed, the country and the port or city of delivery, the delivery terms (for example FOB or CIF), how the goods should be packed and the tender reference, if any.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Sieve Shaker Rotap Type at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its soil testing equipment for classification, compaction, density, shear and consolidation tests go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
Related Soil Testing Equipment
- Brass Frame Sieves — full-depth test sieves in 200 to 450 mm diameters with stainless steel frames and wire cloth.
- Electromagnetic Digital Sieve Shaker — electromagnetic vertical-motion shaker for 12 sieves of 200 mm or 8 of 300 mm, with timer.
- Sieve Shaker Hand Operated — bench-mounted hand wheel sieve shaker with gear-driven side-to-side carrier and fly wheel.
- Gyratory Sieve Shaker Motorized — 1/4 H.P. gyratory sieve shaker with up-and-down table motion for up to 7 sieves.
See the full Soil Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other soil testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of shakers and whether 150 mm or 200 mm sieves will be used and the delivery location through the contact page; the Add To Cart button on this page also adds the Sieve Shaker Rotap Type to an enquiry.
