Speedy Moisture Meter
Product Code : EL-STLE-10939

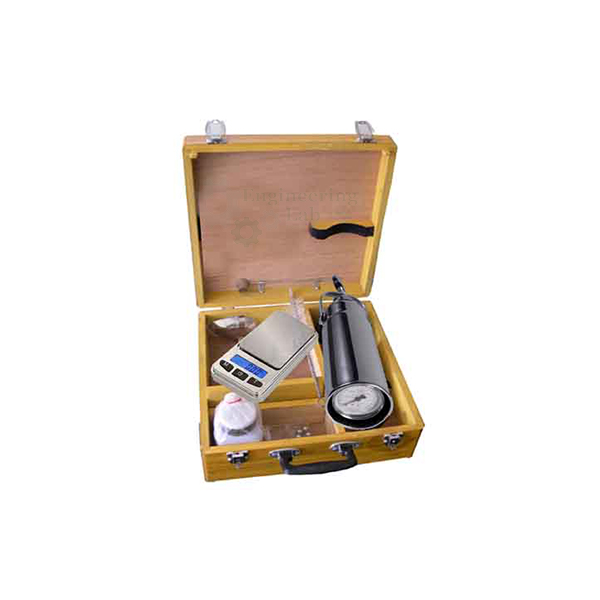

Speedy Moisture Meter (code EL-STLE-10939) is an apparatus for quickly finding the moisture content of powdered materials, among them sand, soil, coal, cement and pottery slip, using the acetylene gas formed when calcium carbide meets the water in a sample. The sample and reagent are shaken with four steel balls in a 6 gms pressure vessel whose gauge, calibrated 0-50% or 0-25%, reads moisture on the wet weight basis; a digital balance and wooden carrying case are included.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Quick determination of the moisture content of materials in powder form, such as sand, soil, coal, cement and pottery slip |
| Principle | Calcium carbide mixed with a weighed sample generates acetylene gas with its moisture; the gas pressure in the vessel is read on a gauge calibrated in moisture percentage |
| Reading basis | Moisture percentage on the wet weight basis, convertible to the dry weight basis |
| Pressure vessel | 6 gms capacity, with clamp for the sealing cap |
| Gasket | Rubber sealing gasket |
| Pressure gauge | Calibrated in percentage moisture content on the wet weight basis |
| Balance | Digital balance for weighing the sample |
| Scoop | For measuring the calcium carbide reagent |
| Reagent | One bottle |
| Mixing | Set of four steel balls |
| Carrying case | Polished wooden case with handle |
| Cleaning | One cleaning brush |
| Spares (extra cost) | Carbide reagent in bottles of 500 gms each |
| Standards | ASTM D 4944, AASHTO T 217 |
| Gauge version A | |
| Gauge range | 0-50% × 0.50% |
| Gauge version B | |
| Gauge range | 0-25% × 0.25% |
| Supply | |
| Product code | EL-STLE-10939 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Speedy Moisture Meter Used For?
Moisture content governs how soils and aggregates compact and how mixes behave, and oven drying, the usual reference method, takes many hours. The meter gives a result on the spot: the operator weighs the sample on the digital balance, places it with a scoop of calcium carbide and the steel balls in the pressure vessel, clamps the cap and shakes the vessel. The acetylene formed by the water raises the pressure, and the gauge shows the moisture directly as a percentage of wet weight, which can be converted to the dry weight basis. The standards listed are ASTM D 4944 and AASHTO T 217.
What to Specify When Ordering
- Quantity — the number of moisture meter kits required.
- Gauge — version A, calibrated 0-50% × 0.50%, or version B, calibrated 0-25% × 0.25%.
- Spare reagent — the number of 500 gms bottles of carbide reagent wanted at extra cost.
Frequently Asked Questions
How does the Speedy Moisture Meter work?
Calcium carbide reacts with the water in the weighed sample to form acetylene gas inside the sealed vessel, and the resulting pressure is read on a gauge calibrated directly in moisture percentage.
Which materials can be tested?
It is used for materials in powder form, for example sand, soil, coal, cement and pottery slip, where a quick moisture figure is needed.
What gauge ranges are offered?
Two gauges are offered: version A, calibrated 0-50% × 0.50%, and version B, calibrated 0-25% × 0.25%, both reading on the wet weight basis.
Is the result on a wet or dry weight basis?
The gauge reads moisture percentage on the wet weight basis, and this figure is readily converted to the dry weight basis when required.
What is included in the kit?
A 6 gms pressure vessel with clamp, rubber gasket, pressure gauge, digital balance, carbide scoop, a bottle of reagent, four steel balls, a cleaning brush and a polished wooden carrying case with handle.
Which standards apply to the meter?
The standards listed for this meter are ASTM D 4944 and AASHTO T 217, both covering soil moisture by the calcium carbide gas pressure method.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Speedy Moisture Meter at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its soil testing equipment for classification, compaction, density, shear and consolidation tests go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
Related Soil Testing Equipment
- Speedy Moisture Testers — carbide pressure moisture tester for soil, 0-25% gauge, with balance in wooden case.
- Moisture Determination Balance — automatic drying balance, 160 g × 0.001 g, with continuous moisture loss readout and timer.
- Proctor Penetrometer — spring dynamometer needle penetrometer, 0 to 55 kg scale, with nine needles in wooden case.
See the full Soil Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other soil testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of kits, the gauge version (A or B) and any spare reagent bottles and the delivery location through the contact page; the Add To Cart button on this page also adds the Speedy Moisture Meter to an enquiry.
