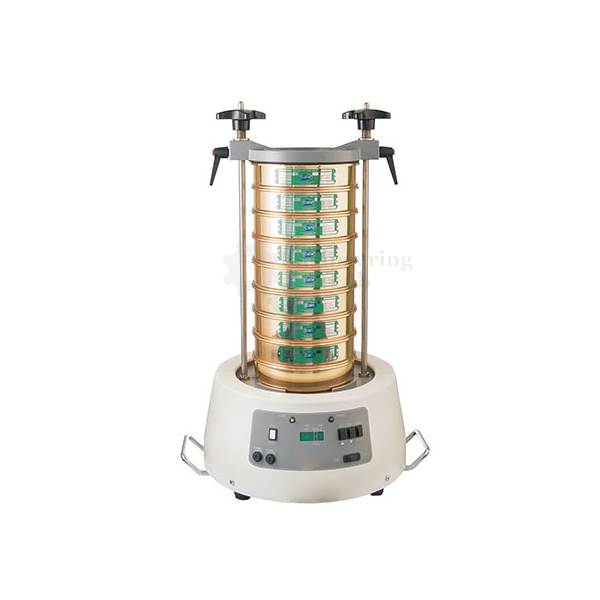

Electromagnetic Digital Sieve Shaker
Product Code : EL-STLE-10415
Electromagnetic Digital Sieve Shaker (code EL-STLE-10415) is a sieve shaker that gives a vertical sieving motion from an electromagnetic unit, used for sieving sand and aggregates; with its upper plate removed it serves as a vibrating table for one concrete specimen. It holds 12 sieves of 200 mm (8 in) or 8 sieves of 300 mm (12 in) with pan and cover, has a 400 W rating, weighs about 30 kg and comes with a timer.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Sieving motion | Vertical, produced by an electromagnetic unit |
| Use | Sieving sand and aggregates |
| Second use | Vibrating table for one concrete specimen, with the upper plate removed |
| Supplied with | Timer |
| Dimensions | 495 × 405 × 945 mm |
| Weight | Approx. 30 kg |
| Power | 400 W |
| Sieve capacity | |
| 200 mm (8 in) sieves | 12 pieces, plus pan and cover |
| 300 mm (12 in) sieves | 8 pieces, plus pan and cover |
| Supply | |
| Product code | EL-STLE-10415 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Electromagnetic Digital Sieve Shaker Used For?
In a sieve analysis the nest of sieves has to be agitated long enough for every particle to reach a sieve it cannot pass, and doing this by hand is slow and hard to repeat from test to test. The operator stacks up to 12 sieves of 200 mm or 8 of 300 mm with pan and cover, sets the timer and starts the electromagnetic drive, which moves the stack vertically; the fractions left on each sieve are then weighed. Taking off the upper plate turns the unit into a vibrating table for compacting a single concrete specimen.
What to Specify When Ordering
- Quantity — the number of shakers to be supplied.
- Sieve diameter — whether 200 mm (8 in) or 300 mm (12 in) sieves will be used, as the stack holds 12 or 8 of them.
Frequently Asked Questions
How many sieves can be stacked on the shaker?
It takes 12 pieces of 200 mm (8 in) sieves or 8 pieces of 300 mm (12 in) sieves, in each case together with a pan and cover.
What kind of motion does it produce?
An electromagnetic unit drives the sieves in a vertical sieving motion, and the shaker is intended for testing sand and aggregates.
Can it be used for concrete work as well?
Yes. With the upper plate taken off, the shaker doubles as a vibrating table for a single concrete specimen.
What are its size, weight and power rating?
The shaker measures 495 × 405 × 945 mm, weighs approximately 30 kg and has a power rating of 400 W.
Is a timer included?
Yes, the shaker is supplied complete with a timer, so the sieving time can be set for each test run.
What should an export enquiry for this shaker include?
Give the number of shakers, the destination country and port or city, the delivery terms required, such as FOB or CIF, any packing needs and the tender reference if there is one.
OEM Manufacturer
Buyers of the Electromagnetic Digital Sieve Shaker deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests soil testing equipment for classification, compaction, density, shear and consolidation tests, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Soil Testing Equipment
- Brass Frame Sieves — full-depth test sieves in 200 to 450 mm diameters with stainless steel frames and wire cloth.
- Sieve Shaker Rotap Type — motorised tapping sieve shaker with oil-immersed mechanism for up to 7 sieves of 150 or 200 mm.
- Gyratory Sieve Shaker Motorized — 1/4 H.P. gyratory sieve shaker with up-and-down table motion for up to 7 sieves.
- Digital Sieve Shaker — vibratory sieve shaker for heavy samples with 60 minute timer and quick-release sieve clamp.
See the full Soil Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other soil testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of shakers and the sieve diameter you will use and your delivery location through the contact page, or add the Electromagnetic Digital Sieve Shaker to the enquiry cart from this page.
