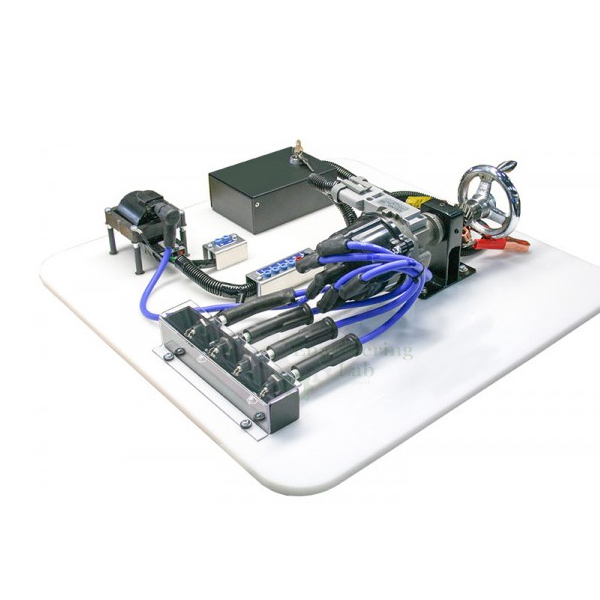

Distributor Ignition System Trainer
Product Code : EL-TELE-10694
Quick Answer: The Distributor Ignition System Trainer is a bench-top training board that reproduces the operation of a distributor-type electronic ignition system used in petrol engines, built from actual automotive components including an ignition coil, distributor, spark plugs and a 12V DC power supply. A low-speed electric motor drives the distributor so students can directly observe spark generation and firing order, and a built-in fault box lets them practise fault diagnosis at dedicated test points.
The Distributor Ignition System Trainer is a training board used to teach the ignition system with a distributor, built from actual automobile petrol-engine components including an ignition coil, distributor, a set of spark plugs and a 12V DC power supply. It is a working model designed to demonstrate to students the operation of a typical electronic ignition system used in cars; to show the spark generation and firing order, the distributor is driven by a low-speed electric motor.
FEATURES:
This includes all the individual components of the system presented on a steel turret so that each component can be clearly identified.
Visualization of Spark & Firing order.
Electric motor for driving the distributor.
Demonstration model consisting of actual components used in Automobiles.
SPECIFICATION:
All brand new components
Distributor with hall effect sensor
Fault box with 4 faults
Ignition control module
Ignition coil
Spark plugs and plug wires
Test points for diagnosis
DIMENSIONS AND WEIGHT:
L x W x H: 500x 600x 400mm
Weight (approx.): 80kg
