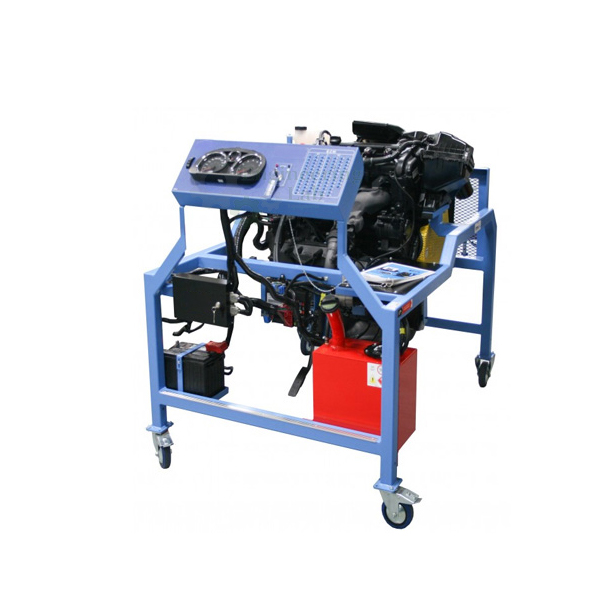

Four Stroke Four Cylinder Petrol Engine Test Bench
Product Code : EL-TELE-10696
Quick Answer: This Four Stroke Four Cylinder Petrol Engine Test Bench pairs a four-cylinder petrol engine fitted with a controlled catalytic converter to a dedicated load unit for hands-on engine performance testing. The engine and brake are joined through a rotationally elastic coupling with a jointed shaft on a solid, roller-mounted welded frame, with hot surfaces and rotating parts guarded by perforated plates for safety, and the engine will only start once it is connected to the load unit both mechanically and electrically. Test data is managed on a PC via a single USB link to the electronic console.
The engine used here is a four-cylinder petrol engine with a controlled catalytic converter, fitted with its own closed cooling water circuit and carried on a solid welded frame on rollers. Hazardous areas such as hot surfaces and rotating parts are covered with perforated plates, and the engine is attached to the load unit by fasteners, with the connection to the brake made via a rotationally elastic coupling with a jointed shaft. The engine software runs on a personal computer, requiring only a single USB interface between the electronic console and the PC; for safety reasons, the engine has been modified so that it only starts when it is connected to the load unit both mechanically and electrically.
FEATURES:
Closed cooling water circuit
Engine flexibly mounted on mobile frame
Plotting of torque and power curves
Determination of specific fuel consumption
Determination of volumetric efficiency and lambda (fuel-air ratio)
Energy balances
Overall engine efficiency
Switch cabinet with warning lamps (oil pressure, alternator failure), operating time counter and ignition key
SPECIFICATIONS:
Max. Power: 63 BHP @ 5500 rpm
Max. Torqe: 89 Nm @ 3000 rpm
Fuel: Petrol
Cooling: Water-cooled
Ignition: Spark ignition
Capacity: 1086 cc
No of cylinders: Four
Bore: 66 mm
Stroke length: 77 mm
Starting: Self-start
Working stroke: Four strokes
Battery: 12V, 45A
Alternator: 12V, 45A
Power required: 230V, 50Hz, 1 phase
DIMENSIONS AND WEIGHT:
L x W x H: 1200x 1000x 1200mm
Weight (approx.): 380kg
