Fluid Statics and Manometry
Product Code : EL-FMLE-10661

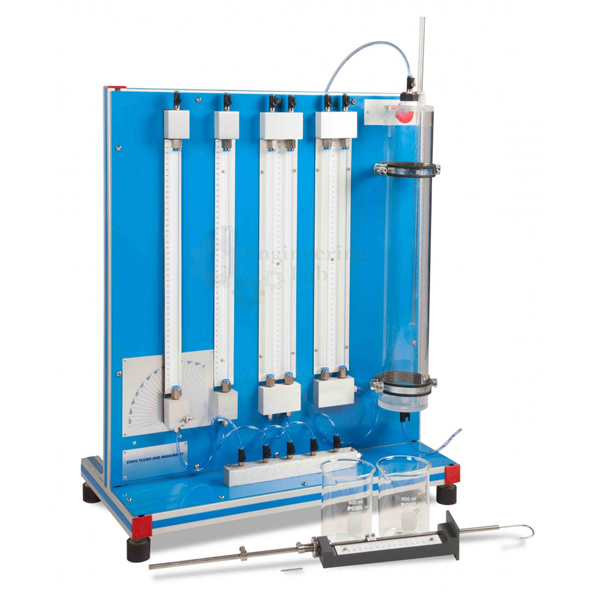

QUICK ANSWER: The Fluid Statics and Manometry apparatus is designed to study static fluids and manometers, introducing users to the behavior of liquids under hydrostatic conditions (fluids at rest) and to the use of different manometric tubes for pressure measurement – including a ‘U’ shape vertical tube, two parallel vertical tubes, a variable-section tube and a tube on a pivot that inclines from 0 to 90º – mounted on an aluminum/MS structure with painted steel panels. It demonstrates that the level of a free surface is unaffected by tube size or shape, uses a Vernier hook and point gauge plus a piezometric tube for level and pressure measurement, and lets users vary liquid densities and inclinations, and even use an inverted pressurized ‘U’ tube manometer, to study differential pressure, head and the effect of liquid motion (losses due to friction) – demonstrating the properties of Newtonian fluids as a foundation for later studying fluids in motion.
The Fluid Statics and Manometry apparatus has been designed to study static fluids and manometers. It provides the user an introduction to the behavior of liquids under hydrostatic conditions (fluids at rest) and to the application of those principles in pressure measurement by using different manometric tubes. It allows the user to demonstrate the properties of Newtonian fluids and to understand a wide range of basic principles before studying fluids in motion.
FEATURES:
Level measurement using Vernier hook and point gauge.
To measure the liquid level using a scale.
Demonstrating that the level of a free surface is not affected by the size or shape of the tube.
Use of a piezometric tube to measure pressure.
To study the basic principles of hydrostatics and to demonstrate the behavior of liquids at rest.
To use manometer tubes to measure differential pressure.
To use a manometer tube to measure head.
To use a ‘U’ tube manometer to measure pressure differences in a gas (air over liquid).
To use a U-shaped manometer for determining the differential pressure.
To use liquids with different densities to change the ‘U’ tube manometer sensitivity.
To use an inverted pressurized ‘U’ tube manometer to measure pressure differences in a liquid.
To use an inclined manometer with different inclinations.
Observing the effect of a liquid in motion (losses due to friction).
SPECIFICATIONS:
The module is mounted on an aluminum /MS structure and painted steel Panels
Vertical tank: Diameter 100 mm and height 575 mm
Vertical manometer tubes (460 mm length)
One “U” shape vertical tube.
Two parallel vertical tubes.
One vertical tube with variable section.
One vertical tube with a pivot that allows it to incline from 0 to 90º.
These tubes can be used individually or in combination for the different demonstrations.
Vernier hook and point gauge.
Piezometric tube.
Manual air pump.
Purge valve.
