Energy Losses in Pipes Manufacturer,Supplier and Exporter in India
Product Code : EL-FMLE-10657
Engineering Lab Equipments is a leading Energy Losses in Pipes Manufacturer,and suppliers in India, Energy Losses in Pipes Manufacturer,and suppliers in South Africa.Energy Losses in Pipes Suppliers in Mozambique,Energy Losses in Pipes A quality product from Engineering Lab Equipments ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

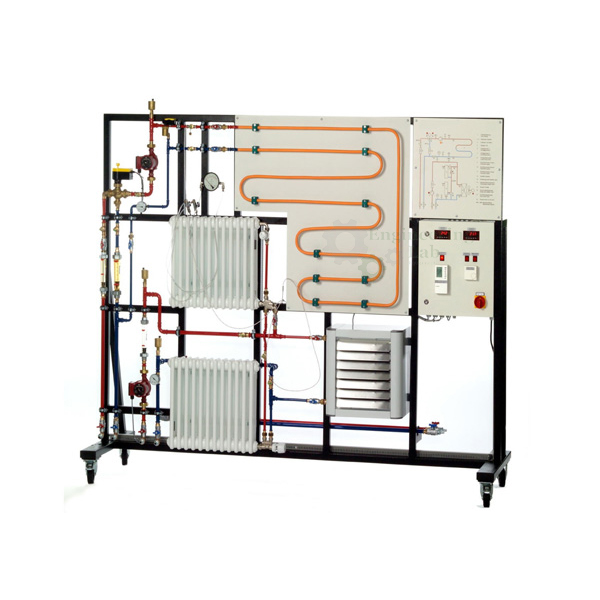

The Trainer includes ten pipe sections with different pipe elements.
Four of the pipe sections are straight and designed with a constant cross-sectional area; they differ from each other in material and cross-section.
One of the pipe sections includes three different types of flow diversion: pipe bend, pipe angle and segment bend.
Two other pipe sections include various shut-off valves and fittings with different resistances.
The opening characteristics of the valves and fittings are determined in the experiment.
Two other pipe sections contain gradual and sudden contractions and enlargements.
The last pipe section is designed as a parallel, dual line.
In pipes through which water flows, the pipe friction and various deflections cause pressure losses that manifest themselves as pressure losses.
The pressure measuring points in the pipe system are designed as annular chambers and are located directly upstream and downstream of the pipe elements, ensuring a precise pressure measurement.
The sensors are connected in pairs to a differential pressure meter, a manometer panel or twin tube manometers where the respective differential pressure can be read.
The flow is displayed on a Rota meter.
Allows the investigation by experimentation of pressure losses in pipes and different pipe elements.
FEATURES:
Investigation of the pressure losses in pipe elements
Comparison of losses in similar components
Different types of pressure measurement
Selection of pipe sections via hose connections with quick-release coupling
SPECIFICATION:
Gradual/sudden enlargement in diameter: from 20 to 32mm
Gradual/sudden contraction in diameter: from 32 to 20mm
Dual line, PVC, diameter: 20×1, 5mm
Pipe sections, length: 1000mm
Straight, Cu, diameter: 18x1mm,
Straight, galvanized steel, diameter: ½”
Straight, PVC, diameter: 20×1, 5mm,
Straight, PVC, diameter: 32×1, 5mm
Section with segment bend, pipe angle, pipe bend
Differential pressure :
Differential pressure meter: 0…2000mbar
Twin tube manometer: 1000mmWC
6 tube manometers: 340mmWC
Measuring ranges :
Flow rate: 0…1600L/h
DIMENSIONS AND WEIGHT:
L x W x H: 600-x400 x 600 mm
Weight: 60kg
Contact ELE for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned engineering lab equipments, engineering equipment manufacturer india, engineering equipment india, chemical engineering lab equipments, control engineering laboratory equipments, control engineering laboratory equipment, control engineering lab equipment in Ambala, India.
The Trainer includes ten pipe sections with different pipe elements.
Four of the pipe sections are straight and designed with a constant cross-sectional area; they differ from each other in material and cross-section.
One of the pipe sections includes three different types of flow diversion: pipe bend, pipe angle and segment bend.
Two other pipe sections include various shut-off valves and fittings with different resistances.
The opening characteristics of the valves and fittings are determined in the experiment.
Two other pipe sections contain gradual and sudden contractions and enlargements.
The last pipe section is designed as a parallel, dual line.
In pipes through which water flows, the pipe friction and various deflections cause pressure losses that manifest themselves as pressure losses.
The pressure measuring points in the pipe system are designed as annular chambers and are located directly upstream and downstream of the pipe elements, ensuring a precise pressure measurement.
The sensors are connected in pairs to a differential pressure meter, a manometer panel or twin tube manometers where the respective differential pressure can be read.
The flow is displayed on a Rota meter.
Allows the investigation by experimentation of pressure losses in pipes and different pipe elements.
FEATURES:
Investigation of the pressure losses in pipe elements
Comparison of losses in similar components
Different types of pressure measurement
Selection of pipe sections via hose connections with quick-release coupling
SPECIFICATION:
Gradual/sudden enlargement in diameter: from 20 to 32mm
Gradual/sudden contraction in diameter: from 32 to 20mm
Dual line, PVC, diameter: 20×1, 5mm
Pipe sections, length: 1000mm
Straight, Cu, diameter: 18x1mm,
Straight, galvanized steel, diameter: ½”
Straight, PVC, diameter: 20×1, 5mm,
Straight, PVC, diameter: 32×1, 5mm
Section with segment bend, pipe angle, pipe bend
Differential pressure :
Differential pressure meter: 0…2000mbar
Twin tube manometer: 1000mmWC
6 tube manometers: 340mmWC
Measuring ranges :
Flow rate: 0…1600L/h
DIMENSIONS AND WEIGHT:
L x W x H: 600-x400 x 600 mm
Weight: 60kg
Contact ELE for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned engineering lab equipments, engineering equipment manufacturer india, engineering equipment india, chemical engineering lab equipments, control engineering laboratory equipments, control engineering laboratory equipment, control engineering lab equipment in Ambala, India.
