Demonstration Pelton Turbine

Product Code : EL-FMLE-10656
Engineering Labs Equipment is a leading Demonstration Pelton Turbine Manufacturer,and suppliers in India, Demonstration Pelton Turbine Uruguay (Montevideo), Demonstration Pelton Turbine Uzbekistan (Tashkent), Demonstration Pelton Turbine Venezuela (Caracas), Demonstration Pelton Turbine Vietnam (Hanoi), Demonstration Pelton Turbine Yemen (Sana'a), Demonstration Pelton Turbine Zambia (Lusaka), Zimbabwe (Harare), Eswatini (Mbabane) (Lobamba), Ethiopia (Addis Ababa), Fiji (Suva), Gabon (Libreville), Gambia (Banjul), Georgia (Tbilisi), Ghana (Accra), India (Delhi, Mumbai, Kolkatta, Chennai), Indonesia (Jakarta), Iraq (Baghdad), Ivory Coast (Yamoussoukro), Jamaica (Kingston), Jordan (Amman), Kazakhstan (Astana), Kenya (Nairobi), Kiribati (Tarawa), Kosovo (Pristina), Kuwait (Kuwait City), Kyrgyzstan (Bishkek), Laos (Vientiane), Latvia (Riga), Lebanon (Beirut), Lesotho (Maseru), Liberia (Monrovia), Libya (Tripoli), Lithuania (Vilnuis), Luxembourg (Luxembourg), Malawi (Lilongwe), Malaysia (Federal Territory of Kuala Lumpur), Maldives (Malle), Mali (Federal Territory of Kuala Lumpur), Malta (Male), Mauritania (Nouakchott), Mauritius (Port Louis), Mexico (Mexico City), Mongolia (Ulaanbaatar), Bulgaria (Sofia), Burkina Faso (Ouagadougou), Burundi (Gitega), Cambodia (Phnom Penh), Cameroon (Yaoundé), Cape Verde (Praia), Central African Republic (Bangui), Chad (N'Djamena), Chile (Santiago), Colombia (Bogota), Comoros (Moroni), Congo (Kinshasa), Costa Rica (San José), Croatia (Zagreb), Cuba (Havana), Cyprus (Nicosia), Czech Republic (Prague), Denmark (Copenhagen) ,Djibouti (Djibouti City), Dominican Republic (Santo Domingo), DR Congo (Kinshasa), Ecuador (Quito), Egypt (Cairo), El Salvador (San Salvador), Equatorial Guinea (Malabo), Eritrea (Asmara), Estonia (Tallinn)

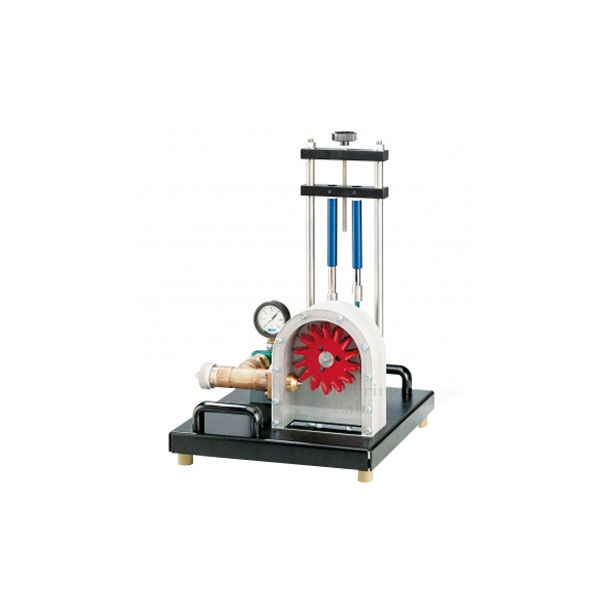

The experimental unit consists of the Pelton wheel, a needle nozzle used as distributor, a band brake for loading the turbine and a housing with a transparent front panel.
The transparent cover enables to observe the water flow, the Pelton wheel and the nozzle during operation.
Adjusting the nozzle needle modifies the nozzle cross-section and thus the flow rate.
Water turbines are turbo machines utilizing waterpower.
The Pelton turbine is a type of impulse turbine; such turbines convert the pressure energy of water into kinetic energy entirely in the distributor.
During the conversion, the water jet is accelerated in a nozzle and directed onto the blades of the Pelton wheel tangentially.
The water jet is redirected by approximately 180° in the blades.
The impulse of the water jet is transmitted to the Pelton wheel.
The turbine torque is determined by force measurement on a band brake and is read on spring balances.
A manometer shows the water pressure at the turbine inlet.
For measuring the rotational speed, a non-contact speed sensor, is required.

Model of an impulse turbine
Design and function of a Pelton turbine
Determination of torque, power and efficiency
Graphical representation of characteristic curves for torque, power and efficiency
Function of a Pelton turbine
Transparent front panel for observing the operating area
Loading the turbine by use of the band brake
Adjustable nozzle needle for setting different nozzle cross-sections
Marking on brake drum for non-contact speed measurement
Instruments: spring balances for determining the torque, manometer shows pressure at turbine inlet.
The experimental unit is positioned easily and securely on the work surface.
Pelton turbine :
Output: 5W at 500min-1, approx. 30L/min, H=2m

Needle nozzle :
Jet diameter: 10mm

Pelton wheel :
14 blades
Blade width: 33,5mm
External Ø: 132mm

Measuring ranges :
Force: 2x 0…10N
Pressure: 0…1bar

L x W x H: 1000-x800 x 1200 mm
Weight: 90kg
