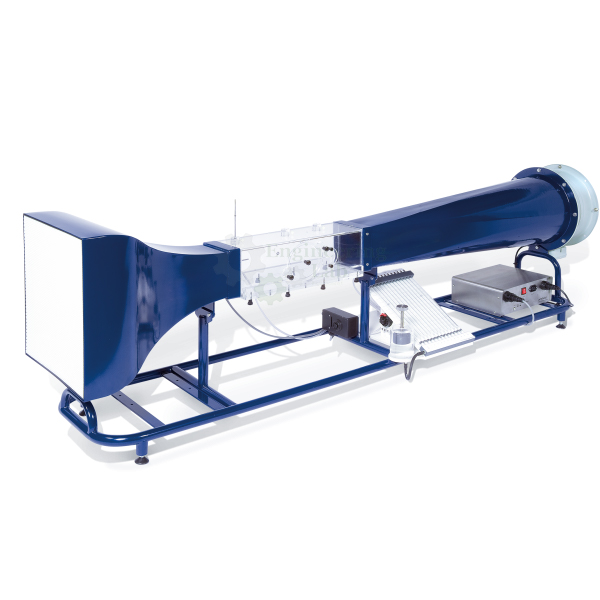

Subsonic Wind Tunnel
Product Code : EL-FMLE-10681
QUICK ANSWER: The Subsonic Wind Tunnel is a small, computer-controlled wind tunnel designed for bench-top operation, in which air is drawn through a 150mm (6” nominal) square, 455mm-long working section by a variable-speed fan at the discharge end; a honeycomb flow straightener at the inlet and a 9.4:1 contraction ratio ensure well-developed airflow, giving an air velocity in the test section variable from 0 to 34m/s. The clear acrylic working section gives good visibility of the models under test and has model connection points in its sidewall and roof, and its entire base is removable to allow the insertion of large or complex models such as the Bernoulli Apparatus, Boundary Layer Plate or alternative models built by the user. A choice of water or electronic manometer banks, quick-release tube connectors and fastenings for easy model changing, and a simple flow visualization technique support a wide range of aerodynamics and airflow studies, on a 220-240V, single-phase, 50Hz, 10A supply.
The Subsonic Wind Tunnel module is a small wind tunnel designed for bench top operation; air is drawn through the working section by a variable speed fan at the discharge end of the tunnel. A honeycomb flow straightener is incorporated at the inlet, and a 9.4:1 contraction ratio ensures well-developed airflow through the working section, which is fabricated from clear acrylic to give good visibility of the models, with appropriate model connection points included in the sidewall and roof of the working section. A unique feature of the working section is that its entire base is removable to allow the insertion of large or complex models such as the Bernoulli Apparatus, Boundary Layer Plate or alternative models constructed by the user.
FEATURES:
Computer controlled air flow
150mm (6” nominal) square working section
Transparent working section for visibility
Wide range of models for both aerodynamics and air flow studies
Choice of water or electronic manometer banks
Quick release connectors on manometer tubes and quick release fastenings for easy model changing
Simple flow visualization technique incorporated
SPECIFICATION:
Square test section, nominally 150 x 150mm, length 455 mm
Air velocity in the test section variable from 0 to 34m/s
Profiled inlet with a 9.4:1 (nominal) contraction ratio
Tube length: 320mm
Lift force: 3.4N
Drag force: 3.4N
Inclination: +/- 45°
Inclination: 30°
Measurement range: 0-160 mm H2O
16 channels 0-178 mm H2O (differential)
Cord length: 61.5mm
Thickness: 9.2mm
Equatorial diameters :
Large models: 50mm
Golf ball and small sphere: 43mm
Cylinder diameter: 30mm
Tapping spacing: 20°
Throat width: 100mm
Upstream/downstream width: 150mm
Power Required: 220-240V/1/Phase, 50Hz, 10Amps
DIMENSIONS AND WEIGHT
L x W x H: 2200 x 600 x 700 mm
Weight: 220kg
