Flow Meter Demonstration Unit

Product Code : EL-FMLE-10658
Engineering Labs Equipment is a leading Flow Meter Demonstration Unit Manufacturer,and suppliers in India, Flow Meter Demonstration Unit Uruguay (Montevideo), Flow Meter Demonstration Unit Uzbekistan (Tashkent), Flow Meter Demonstration Unit Venezuela (Caracas), Flow Meter Demonstration Unit Vietnam (Hanoi), Flow Meter Demonstration Unit Yemen (Sana'a), Flow Meter Demonstration Unit Zambia (Lusaka), Zimbabwe (Harare), Eswatini (Mbabane) (Lobamba), Ethiopia (Addis Ababa), Fiji (Suva), Gabon (Libreville), Gambia (Banjul), Georgia (Tbilisi), Ghana (Accra), India (Delhi, Mumbai, Kolkatta, Chennai), Indonesia (Jakarta), Iraq (Baghdad), Ivory Coast (Yamoussoukro), Jamaica (Kingston), Jordan (Amman), Kazakhstan (Astana), Kenya (Nairobi), Kiribati (Tarawa), Kosovo (Pristina), Kuwait (Kuwait City), Kyrgyzstan (Bishkek), Laos (Vientiane), Latvia (Riga), Lebanon (Beirut), Lesotho (Maseru), Liberia (Monrovia), Libya (Tripoli), Lithuania (Vilnuis), Luxembourg (Luxembourg), Malawi (Lilongwe), Malaysia (Federal Territory of Kuala Lumpur), Maldives (Malle), Mali (Federal Territory of Kuala Lumpur), Malta (Male), Mauritania (Nouakchott), Mauritius (Port Louis), Mexico (Mexico City), Mongolia (Ulaanbaatar), Bulgaria (Sofia), Burkina Faso (Ouagadougou), Burundi (Gitega), Cambodia (Phnom Penh), Cameroon (Yaoundé), Cape Verde (Praia), Central African Republic (Bangui), Chad (N'Djamena), Chile (Santiago), Colombia (Bogota), Comoros (Moroni), Congo (Kinshasa), Costa Rica (San José), Croatia (Zagreb), Cuba (Havana), Cyprus (Nicosia), Czech Republic (Prague), Denmark (Copenhagen) ,Djibouti (Djibouti City), Dominican Republic (Santo Domingo), DR Congo (Kinshasa), Ecuador (Quito), Egypt (Cairo), El Salvador (San Salvador), Equatorial Guinea (Malabo), Eritrea (Asmara), Estonia (Tallinn)

A flow control valve permits variation of the flow rate through the circuit.
Pressure tapping’s are incorporated so that the head loss characteristics of each flow meter may be measured.
These tapping’s are connected to an eight-tube manometer bank incorporating a manifold with an air bleed valve.

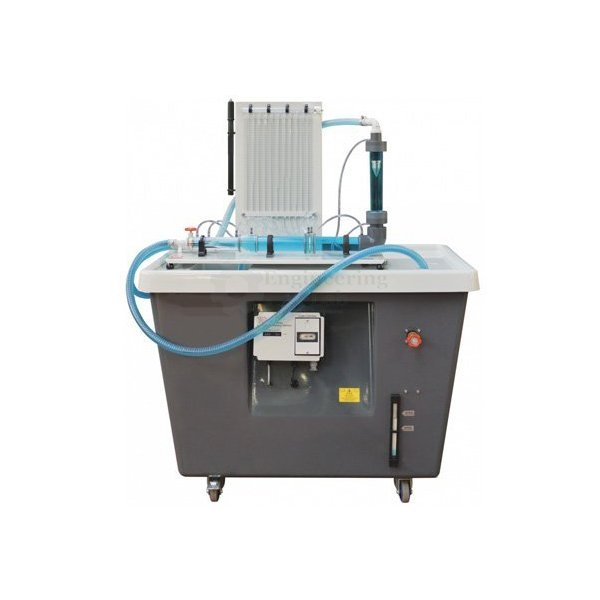

Flow Meter Demonstration Apparatus contains different flow rate measurement devices that are clearly laid out with the associated pipework on a metal sheet.
So that the function can be observed, the measuring devices are made of transparent plastic.
A hand pump facilitates pressurization of the manometers.
The circuit and manometer are attached to a support framework, which stands on the working top of the Hydraulics Bench.
The bench is used as the source of water supply and for volumetrically calibrating each flow meter.
This is included in the form of a multiple tube manometer so that the pressure curve along the venturi flow meter can also be displayed.
The apparatus is placed on the Hydraulics Bench; this provides the water supply to the unit.

Directly comparing flow measurement using a Venturi meter, variable area meter and orifice plate
Calibrating each flow meter using the volumetric measuring tank of the bench
Comparing pressure drops across each device
Venturi meter, variable-area meter and orifice plate with flow-control valve
Pressure tapping’s to measure head loss across each meter
Quick-release fitting for easy connection to Hydraulics Bench
Supplied with manometer board with eight tubes

Manometer range: 0-400mm
Variable area meter: 2-20 l/min
Number of manometer tubes: 8
Orifice plate diameter: 20mm

Venturi dimensions:
Throat diameter: 15mm
Upstream pipe diameter: 31.75mm
Upstream taper: 21° inclusive
Downstream taper: 14° inclusive

L x W x H: 800-x800 x 1200 mm
Weight: 120kg
