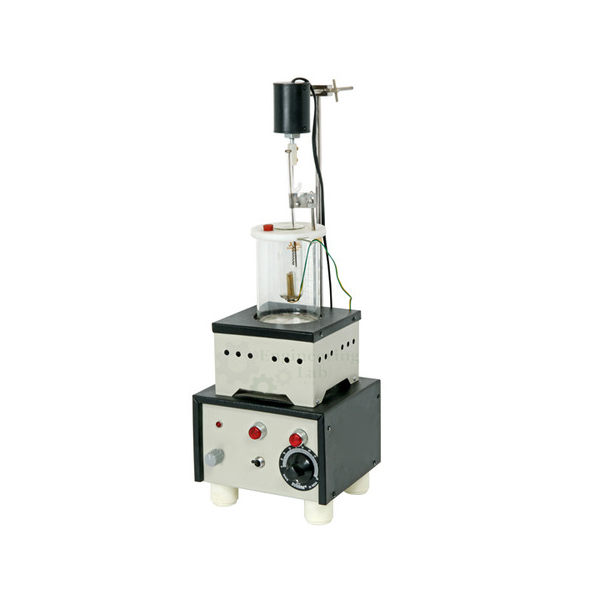

Aniline Point Apparatus
Product Code : EL-FTLE-10903
Quick Answer: The Aniline Point Apparatus (Thin Film type) determines the aniline point and mixed aniline point of a sample per ASTM D611 Method B, by stirring an aniline-sample mixture in a borosilicate glass thin film tube suspended in a heating bath and observing phase separation via a light well and 6V lamp as the mixture cools. It includes a 400mL Pyrex beaker, a cover assembly with bath stirrer, a sample pump rotor and cooling coil, and a drive motor, with an optional Powertrol Heater accessory for repeatable heating-rate control. It conforms to ASTM D611; IP 2; ISO 2977; DIN 51775; and FTM 791-3601; NF M 07-021.
The Thin Film Aniline Point Apparatus conforms to ASTM D611 and related specifications, for aniline point and mixed aniline point determinations according to Method B. It stirs an aniline-sample mixture in a borosilicate glass thin film tube suspended in a heating bath, and the thin film of the mixture flows over a light well illuminated by a variable 6V lamp; when the lamp filament brightens inside the well, the mixture is allowed to cool until the two phases separate, as indicated by obscuring of the lamp filament.
It consists of a thin film tube, a 400mL Pyrex beaker, a cover assembly with bath stirrer, a sample pump rotor and cooling coil, a 6V lamp with line cord, and a drive motor; a positive drive pulley system rotates the sample and bath stirrers. A porcelain refractory top plate shields the 750W heater and has a positioning well for the Pyrex bath, and a low voltage receptacle in the heater housing accepts the line cord of the 6V lamp. Heating rate can be adjusted per specifications using the accessory Powertrol Heater, available at additional cost, which has variable stepless control and a reference dial for repeatable control of heating rate.
Specifications:
Conforms to the specifications of: ASTM D611; IP 2; ISO 2977; DIN 51775; FTM 791-3601; NF M 07-021
Bath Medium: 400mL of heat transfer fluid (355-000-001 mineral oil is suitable for this application and is available at additional cost)
Included Accessories:
Thermometer Ferrules (2)
Clamps and Support Rod
Accessories available at additional cost:
Powertrol Heater, 115V 50/60Hz
Powertrol Heater, 220-240V 50/60Hz
Standard: ASTM D611; IP 2; ISO 2977; DIN 51775; FTM 791-3601; NF M 07-021
