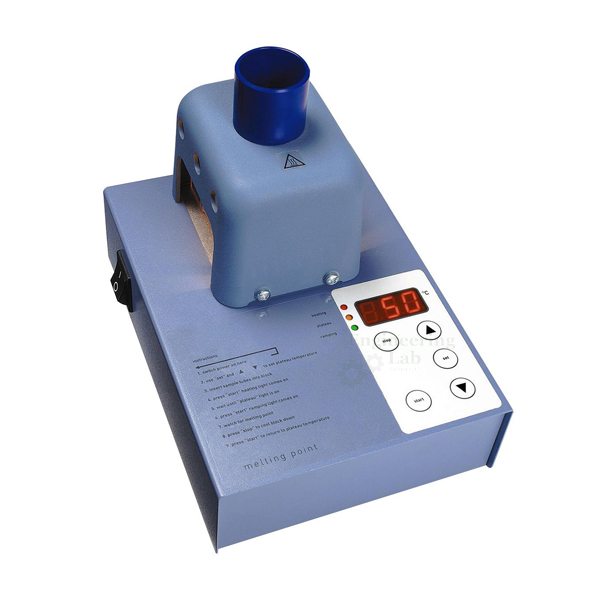

Melting Point Apparatus
Product Code : EL-FTLE-10894
Quick Answer: The Melting Point Apparatus digitally selects, measures, and displays sample temperature, eliminating the need for a glass thermometer, and lets the operator test two samples simultaneously, viewing the melt through a magnifying lens with built-in illumination. A settable plateau temperature allows unattended warm-up until the plateau is reached, after which the heating rate continues at 2°C, slowly reaching the melt temperature for greater accuracy. It reaches a maximum temperature of 300°C with 1° resolution and operates on 120V AC.
The Melting Point Apparatus is designed for maximum safety and ease of use. It selects, measures, and displays the temperature digitally, ensuring accuracy and avoiding the need for a glass thermometer, and lets the operator test two samples simultaneously, viewing the melt via a magnifying lens with built-in illumination; the back feet can be extended for the optimal viewing angle. A plateau temperature can be set for the initial warm-up, so unattended warm-up time frees up the user until the plateau temperature is reached, after which the heating rate continues at 2°C, slowly reaching the melt temperature for greater accuracy.
KEY FEATURES:
Select, measure, and display the temperature digitally, ensuring accuracy and repeatability.
Easily view the melt via magnifying lens with built-in illumination.
Be more productive—test multiple samples simultaneously.
Save time by setting a plateau temperature for initial warm-up.
Provides 300°C max temp with 1° resolution.
120V AC operation.
Specifications & Description:
Display: 3-digit LED
Number of Samples: 2
Min Temperature: Ambient
Max Temperature (° C): 300
Heat-Up Time: 20°C per minute; 2°C per minute to melt
Height (in): 6
Depth (in): 8
Height (cm): 17
Depth (cm): 22
Width (cm): 16
Power (V AC): 120
Power (Hz): 60
Power (watts): 75
Temperature Sensor: 100Ω Pt RTD
Temperature Accuracy: ±1.0°C at 20°C; ±2.5°C at 300°C
Temperature Resolution: 1°C
