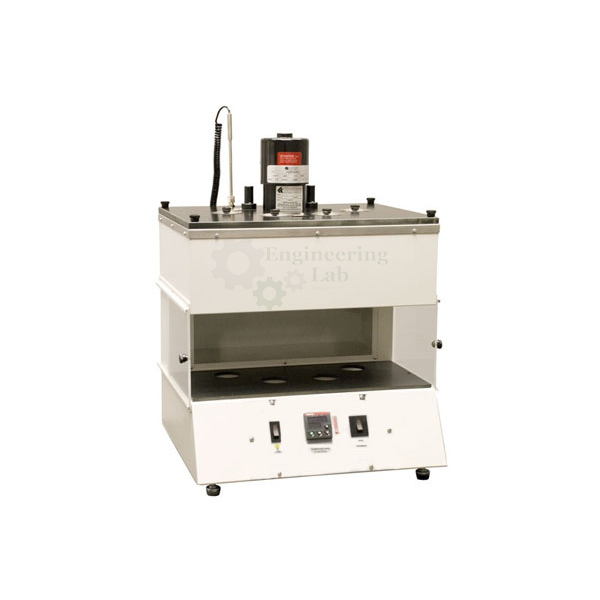

Say Bolt Viscometer Apparatus
Product Code : EL-FTLE-10887
Quick Answer:
The Saybolt Viscometer Apparatus provides an empirical measurement of Saybolt viscosity for petroleum products at specified temperatures between 21 and 99°C (70 to 210°F), by timing how long a 60mL sample takes to flow through a furol or universal orifice and reporting the result in seconds. The two-tube digital unit comes complete with a water-oil bath, stirrer, cooling coil and digitally regulated electric heater, plus universal and furol orifices, a heat-transfer-oil charge, viscosity flasks and thermometer supports, with a separate six-thermometer set (each with 0.1°C subdivisions) covering the full temperature range.
The Saybolt Viscometer is used to determine an empirical measurement of Saybolt viscosity of petroleum products at specified temperatures. The time it takes for a 60mL sample to flow through a tube with a specified diameter (furol or universal) is measured and reported in seconds, with the viscometer usable for temperatures between 21 and 99°C (70 to 210°F). It includes a water-oil bath, stirrer, cooling coil and an electric heater with a digital thermo regulator. The viscosity thermometer set consists of 6 thermometers with temperature ranges of 19 to 27°C, 34 to 42°C, 49 to 57°C, 57 to 65°C, 79 to 87°C (250 mm length) and 95 to 103°C, each with 0.1°C subdivisions; the filter funnel, withdrawal tube and thermometer set should be ordered separately.
The Saybolt Two-Tube Digital Viscometer is supplied complete with:
Universal Orifice, 2 pcs
Furol Orifice, 2 pcs
Heat Transfer Oil, 5 lt
Key
Saybolt viscosity flask, glass, 60 ml, 2 pcs.
Thermometer Support, 2 pcs
Stopper, 2 pcs
Technical Specifications :
Dimensions: 450x300x550 mm
Weight (approx.): 10 kg
Power: 750 W
Standard: ASTM D88; AASHTO T72
