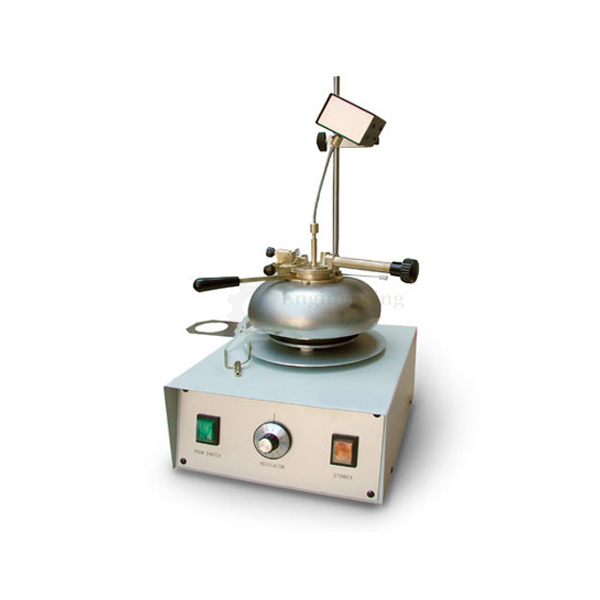

Flash and Fire Point Apparatus
Product Code : EL-FTLE-10890
Quick Answer:
The Flash and Fire Point Apparatus determines the flash point of a wide range of petroleum and lubricating-oil products using a closed-cup method with two-speed sample stirring, widely used for shipping and safety-regulation testing and for characterizing hazardous waste. A brass test cup under a smooth-sliding cover (with pilot flame, test-flame reference bead, built-in stirrer and thermometer ferrule) is heated either electrically, by a 1000W nickel-chromium heater with stepless variable control, or by a gas burner (natural gas, artificial gas or liquid propane), with both versions mounted on a sturdy cast-iron base and fitted with an accessory slow-speed stirrer.
The apparatus determines the flash points of a wide range of products by a closed cup method, with two optional stirring speeds for the sample. It is extensively used in shipping and safety regulations for the detection of contamination by volatile and flammable materials in fuel oils and lubricating oils, and for the characterization of hazardous waste samples. A smooth-operating cover mechanism slides the shutter open and applies the test flame at the turn of a knob; the cover fits over the brass test cup and includes a pilot flame, test flame reference bead, built-in stirrer and plated brass thermometer ferrule. The electrically heated model is equipped with a 1000W nickel-chromium heater with stepless variable control for accurate, repeatable temperature rate-of-rise settings per specification, with the heater unit enclosed in a stainless steel housing with cooling vents; the gas heated model has a built-in nickel-plated brass natural gas burner, or can be supplied with an artificial gas burner or liquid propane burner. Both models are mounted on a sturdy cast iron base and include a line cord receptacle and switch for the accessory slow-speed stirrer.
Accessories:
Stirrer Motor, 115/230V 50/60Hz – Slow speed gear motor rotates stirrer of Tester at 105rpm for Procedure A and at 250rpm for Procedure B.
Includes adjustable support bracket and mounting rod.
Installs in base of flash tester.
Thermometer – Range: 20 to 230°F
Thermometer – Range: –5 to +110°C
Thermometer – Range: 200 to 700°F
Thermometer – Range: 90 to 370°C
Cover Assembly – Complete assembly. Includes shutter, flame exposure device, stirrer and thermometer ferrule.
Brass Test Cup – With heat resistant handle.
Nickel Plated Test Cup – With heat resistant handle
Dimensions:
lxwxh,in.(cm): 9.5 x8x22.5 (24x20x57) with optional stirrer motor installed
Net Weight: 25 lbs (11.4 kg)
Standard: ASTM D93; AASHTO T73-811; IP 34; ISO 2719; DIN 51758; FTM 791-1102; NF M 07-019
