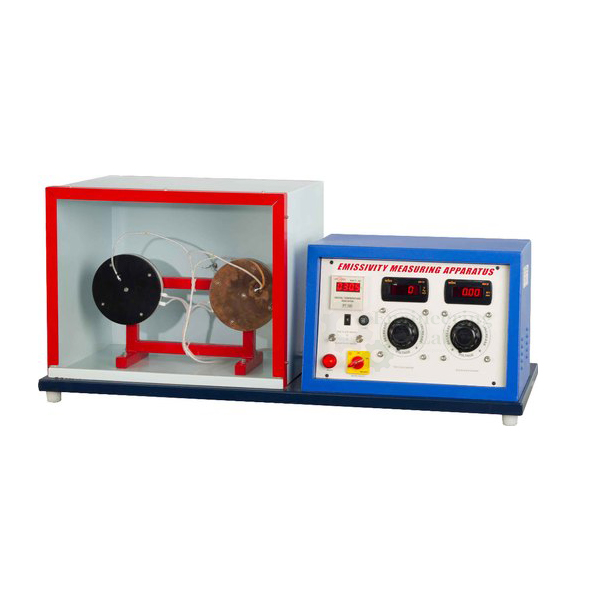

Computerized Emissivity Measurement Apparatus

Product Code : EL-HAMTLE-10754
Engineering Lab Equipments is a leading Computerized Emissivity Measurement Apparatus Manufacturer,and suppliers in India, Computerized Emissivity Measurement Apparatus Manufacturer,and suppliers in South Africa.Computerized Emissivity Measurement Apparatus Suppliers in Mozambique,Computerized Emissivity Measurement Apparatus A quality product from Engineering Lab Equipments ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

The Computerized Emissivity Measurement Apparatus offers basic experiments for targeted teaching on the topic of heat transfer by radiation.
At the heart of the experimental unit is a metallic sample heated by a concentrated light beam.
The light beam is generated by a continuously adjustable halogen lamp and a parabolic reflector.
The reflector concentrates the radiation to a focal point.
A sample is placed on a thermocouple located at the focal point.
The thermal radiation emitted by the sample is measured by a thermopile.
In order to be able to measure the radiation at different distances, the thermopile is mounted on a moveable carriage.
Heat radiation is one of the three basic forms of heat transfer.
In radiation the heat transfer takes place via electromagnetic waves.
Unlike heat conduction and convection, heat radiation can also propagate in a vacuum.
Heat radiation is not bound to a material.
The microprocessor-based instrumentation is well protected in the housing.
With explanatory texts and illustrations the educational software significantly aids the understanding of the theoretical principles.
The software for system operation and for data acquisition and educational software.
The unit is connected to the PC via USB.

FEATURES:
Effect of different surfaces on heat transfer by radiation
Functions educational software, data acquisition, system operation
Fundamentals of heat transfer
Study transient behavior
Create power balances
Verify Lambert’s inverse-square law
Verify Stefan-Boltzmann law
Verify Kirchhoff’s law

SPECIFICATION:
Halogen lamp :
Electrical power: 150W
Max. Temperature: approx. 560°C

Aluminum samples, Ø 20mm
1x matt anodized on both sides
1x painted on both sides (high-temperature paint)
1x matt anodized with one painted side

Copper samples, Ø 20mm
1x nickel-plated
1x heavily oxidized

Steel sample, Ø 20mm
1x heavily oxidized

Measuring ranges :
Temperature: 0…780°C
Radiation intensity: 0…1250W/m2

Required for Operation :
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase; 120V, 60Hz, 1 phase

DIMENSIONS AND WEIGHT:
LxWxH (approx.): 700x450x400mm
Weight (approx.): 20kg
