Computerized Level Control Trainer

Product Code : EL-MAILE-10802
Engineering Labs Equipment is a leading Computerized Level Control Trainer Manufacturer,and suppliers in India, Computerized Level Control Trainer Uruguay (Montevideo), Computerized Level Control Trainer Uzbekistan (Tashkent), Computerized Level Control Trainer Venezuela (Caracas), Computerized Level Control Trainer Vietnam (Hanoi), Computerized Level Control Trainer Yemen (Sana'a), Computerized Level Control Trainer Zambia (Lusaka), Zimbabwe (Harare), Eswatini (Mbabane) (Lobamba), Ethiopia (Addis Ababa), Fiji (Suva), Gabon (Libreville), Gambia (Banjul), Georgia (Tbilisi), Ghana (Accra), India (Delhi, Mumbai, Kolkatta, Chennai), Indonesia (Jakarta), Iraq (Baghdad), Ivory Coast (Yamoussoukro), Jamaica (Kingston), Jordan (Amman), Kazakhstan (Astana), Kenya (Nairobi), Kiribati (Tarawa), Kosovo (Pristina), Kuwait (Kuwait City), Kyrgyzstan (Bishkek), Laos (Vientiane), Latvia (Riga), Lebanon (Beirut), Lesotho (Maseru), Liberia (Monrovia), Libya (Tripoli), Lithuania (Vilnuis), Luxembourg (Luxembourg), Malawi (Lilongwe), Malaysia (Federal Territory of Kuala Lumpur), Maldives (Malle), Mali (Federal Territory of Kuala Lumpur), Malta (Male), Mauritania (Nouakchott), Mauritius (Port Louis), Mexico (Mexico City), Mongolia (Ulaanbaatar), Bulgaria (Sofia), Burkina Faso (Ouagadougou), Burundi (Gitega), Cambodia (Phnom Penh), Cameroon (Yaoundé), Cape Verde (Praia), Central African Republic (Bangui), Chad (N'Djamena), Chile (Santiago), Colombia (Bogota), Comoros (Moroni), Congo (Kinshasa), Costa Rica (San José), Croatia (Zagreb), Cuba (Havana), Cyprus (Nicosia), Czech Republic (Prague), Denmark (Copenhagen) ,Djibouti (Djibouti City), Dominican Republic (Santo Domingo), DR Congo (Kinshasa), Ecuador (Quito), Egypt (Cairo), El Salvador (San Salvador), Equatorial Guinea (Malabo), Eritrea (Asmara), Estonia (Tallinn)

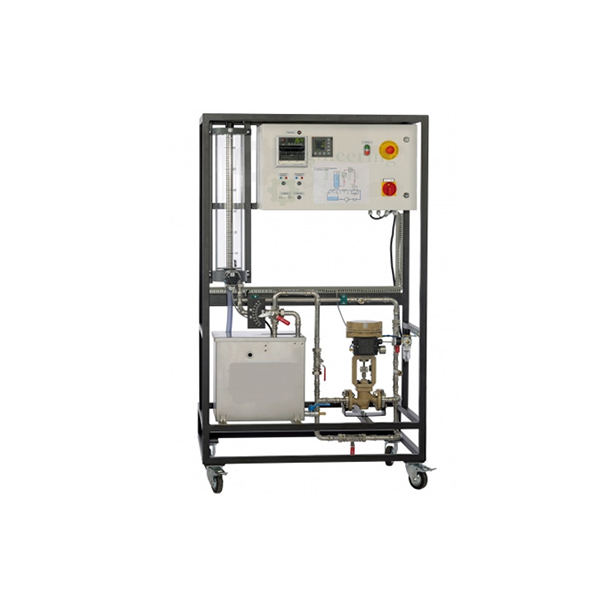

The Trainer provides a comprehensive experimental introduction to the fundamentals of control engineering using an example of level control.
A pump delivers water from a storage tank to the transparent level-controlled tank.
The liquid level is measured by a pressure transducer installed at the base of the level-controlled tank.
The controller used is a state-of-the-art digital industrial controller.
The actuator in the control loop is a pneumatically operated control valve with an electro-pneumatic positioner.
A ball valve in the outlet line enables defined disturbance variables to be generated.
The controlled variable X and the manipulating variable Y are plotted directly on an integrated 2-channel line recorder.
Alternatively, the variables can be tapped as analogue signals at lab jacks on the switch cabinet.
This enables external recording equipment, such as an oscilloscope or a flatbed plotter, to be connected.
Process control software is optionally available.

Experimental introduction to control engineering using an example of level control
Construction of the system with components commonly used in industry
Digital controller with freely selectable parameters: P, I, D and all combinations
Level measurement by pressure sensor

Storage tank: 30L
Centrifugal pump :
Power consumption: 250W
Flow rate: 150L/min
Head: 7m
Speed: 2800min-1

Level-controlled tank :
Level: 0…0,6m
Pressure sensor: 0…100mbar
Pneumatically operated control valve DN 20
Kvs: 4,0m3/h
Reference variable: 4…20mA
Nominal stroke: 15mm
Characteristic curve equal-percentage

Line recorder :
2x 4…20mA
Feed rate: 0…7200mm/h, stepped

Controller :
Process variables X, Y as analogue signals: 4…20mA
Power required for operation :
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase

LxWxH: 1000x700x1750mm
Weight: approx. 120kg
