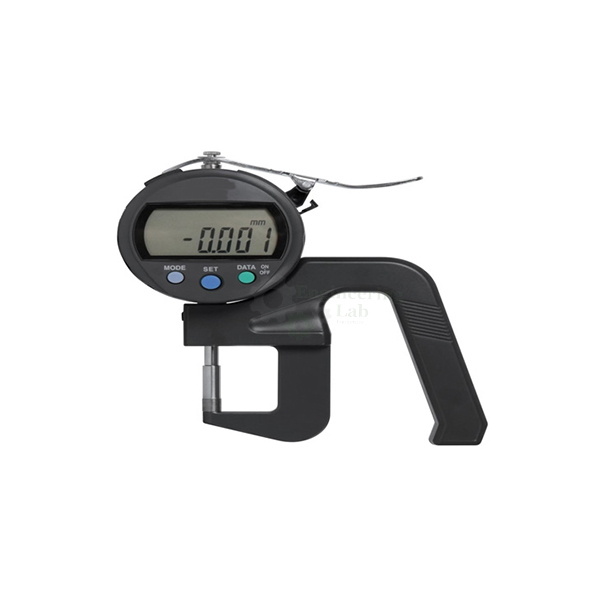

Digital Thickness Gauge
Product Code : EL-MAILE-10829
Quick Answer: This digital thickness gauge is a spindle-type instrument with a large LCD display and a thumb lever to lift the spindle, allowing simple, quick and accurate thickness measurement; its measuring faces are hardened, ground and lapped, and it features a reversible anvil for measuring concave surfaces such as lenses. It offers a measuring range of 0-10mm with a resolution of 0.01mm (0.0005 inch), an accuracy of ±20μm, Imperial/Metric conversion with a Zero/ABS function, and an IP42 protection rating in a ceramic metallic body.
This thickness gauge features a large LCD display as well as a thumb lever to lift the spindle. The digital thickness gauge allows simple, quick and accurate thickness measurement and the measuring faces are hardened, ground and lapped.
FEATURES:
Digital indicator is easy to use while also being quick and efficient.
It features a reversible anvil so it can measure concave surfaces such as lenses, a grip handle and thumb trigger that works with the spring loaded plunger to make the instrument fast and ergonomic.
Ceramic disc contact points
Protection Rating IP42
Data hold
Counting direction switchable
Battery SR 44 or LR 44
Operating Temperature: 0° to 40°
SPECIFICATION:
Imperial/Metric conversion
Zero/ABS
Material: Ceramic Metallic Body
Max measuring Depth: 30mm
Resolution: 0.01mm / 0.0005 inch
Resolution: 0.01mm / 0.0005 inch
Range (mm): 0-10 mm
Resolution (mm): 0.01 mm
Resolution (Inch): 0.0005 inch
Sub Type: Flat Anvil Type
Overall Length (mm): 85 mm
Accuracy: ±20 μm
