Computerized Recirculating Air Conditioning Trainer Manufacturer,Supplier and Exporter in India

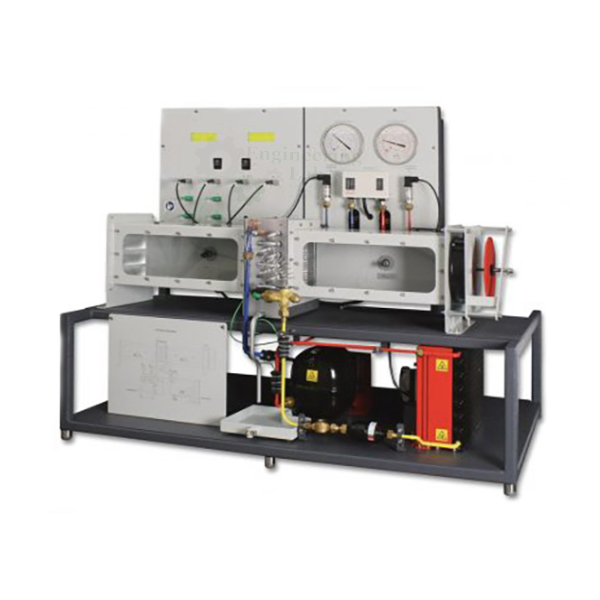

This training unit allow students to investigate air conditioning at a basic level.

Students can use P-H charts and psychometric charts for their calculations and discover the enthalpy change.

The unit features an air-cooled condenser unit connected to an evaporator located in an air duct.

The air duct contains relative humidity and temperature sensors on both sides of the evaporator.

A small fan provides airflow down the duct and can be manually adjusted.

Sensors record the air temperature and air humidity before and after each stage as well as the pressures and temperatures of the refrigerant.

The flow rate of the refrigerant is determined by means of the pressure measurement.

The measured values can be read on digital displays.

The refrigeration circuit features high and low pressure gauges, a pressure switch, sight glass, filter dryer and TEV valve.

The circuit also includes pressure transducers that connect to the instrumentation.

At the same time, the measured values can also be transmitted directly to a PC via USB.

The data acquisition software is included.

FEATURES:

Determine superheat and sub-cooling

Determine Coefficient of Performance (COP)

Determine isentropic and non-isentropic efficiencies of compression stage

Learn to use Psychometric charts

Determine enthalpy change in the airflow

Learn to use a Pressure-Enthalpy chart

Investigate the effect of air flow rate on COP

SPECIFICATION:

Steam humidifier :

Power consumption: 4kW

Steam capacity: 5,5kg/h, switchable in three stages

Fan :

Power consumption: 167W

Max. Volumetric flow rate: 1150m3/h

Speed: 1000…2600min-1

Pmax: 460Pa

Air preheater: 1kW, switchable in two stages

Air reheater: 2kW, switchable in two stages

Air duct, WxH: 300x350mm

Direct evaporator as air cooler: 6kW

Condensing unit :

Power consumption: 968W at 5/25°C

Refrigeration capacity: 2,3kW at 5/25°C

Refrigerant :

Refrigerant: R134a/22/etc

Filling volume: 3,3kg

CO2-equivalent: 2,1t

Measuring ranges :

Differential pressure: 0…100Pa

Temperature: 5x 0…50°C, 4x -100…200°C

Humidity: 5x 10…90%

Pressure: -1…15bar, -1…24bar (refrigerant)

Flow rate: 8…102L/h (refrigerant)

Required for operation :

230V, 50Hz, 1 phase

230V, 60Hz, 1 phase

DIMENSIONS AND WEIGHT:

L x W x H (approx.): 1600 x 800 x 1500 mm

Weight (approx.): 230 kg
