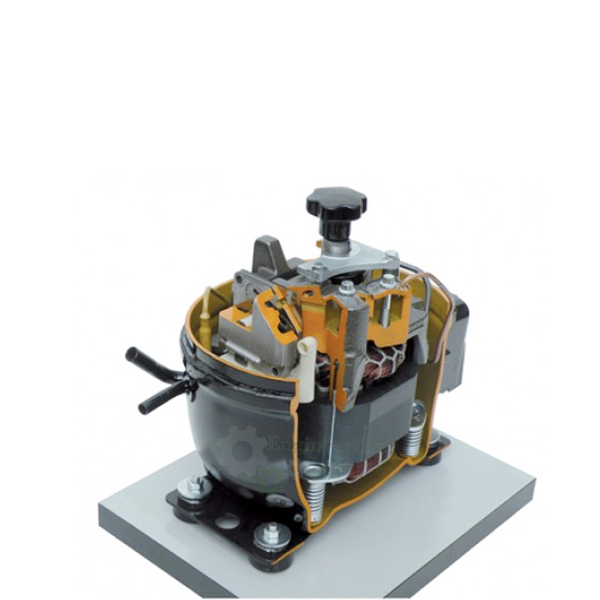

Cut Section Model of Open Hermetic Compressor

Cut Section Model of Open Hermetic Compressor

Product Code : EL-RAACLE-10797

Quick Answer:
The Cut Section Model of Open Hermetic Compressor is a cutaway teaching model built from original compressor parts and sectioned to reveal its internal construction and working in clear, close-up detail. It is painted, mounted on a metal or mild steel sheet base, and supplied with a key card and explanatory literature describing how the compressor works.

Overview:
This model is made from original hermetic compressor parts and is suitably sectioned to expose the internal construction, showing fine constructional details and how the compressor works. It is painted for clarity, mounted on a metal or mild steel sheet base, and supplied with a key card along with literature explaining its working.

FEATURES:
This model will be made out of original parts.
The model will be suitably painted and mounted on a metal or wooden base

DIMENSIONS AND WEIGHT:
L x W x H (approx.): 500 x 400 x 350 mm
Weight (approx.): 25 kg

SPECIFICATION:
Kit of a piston compressor
Compressor consisting of piston and cylinder, housing, driving gear, cylinder cover with valves

Contact Engineering Lab Equipment for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned engineering educational equipments india, engineering equipments distributors, engineering lab instruments, engineering equipments manufacturer, thermodynamics engineering equipment, engineering educational lab equipments in Ambala, India.
